M118684 M143019 Deck Belt - 48"/52" John Deere LX255/LX277/LX279/LX288 - 64"
0.00
Regular price
$31.19
Regular price
Save 11%
$34.93
Sale price
$31.19
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

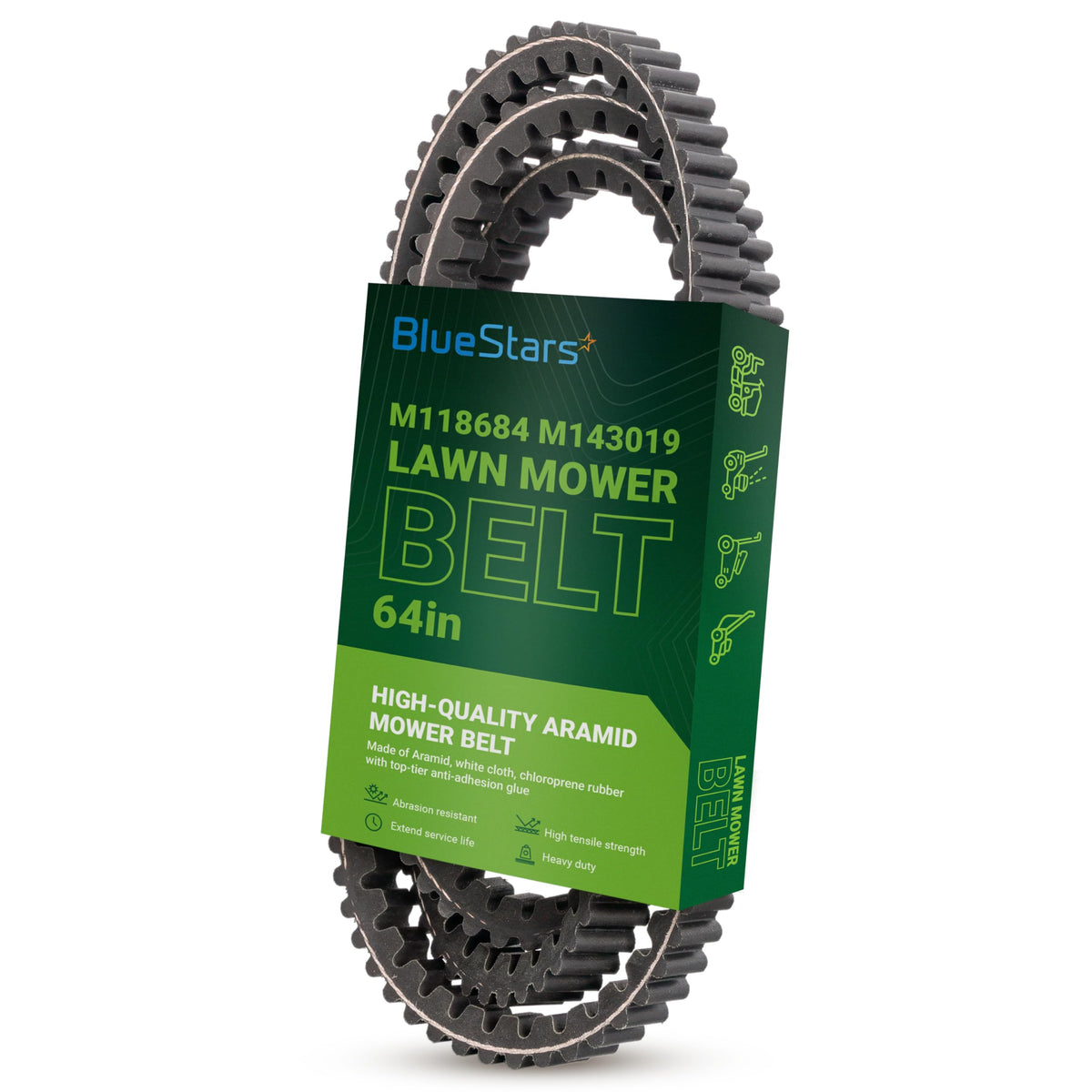

M118684, M143019 Mower Deck Belt | 64"
Key Features
- Durable construction designed for high-torque mower deck applications.

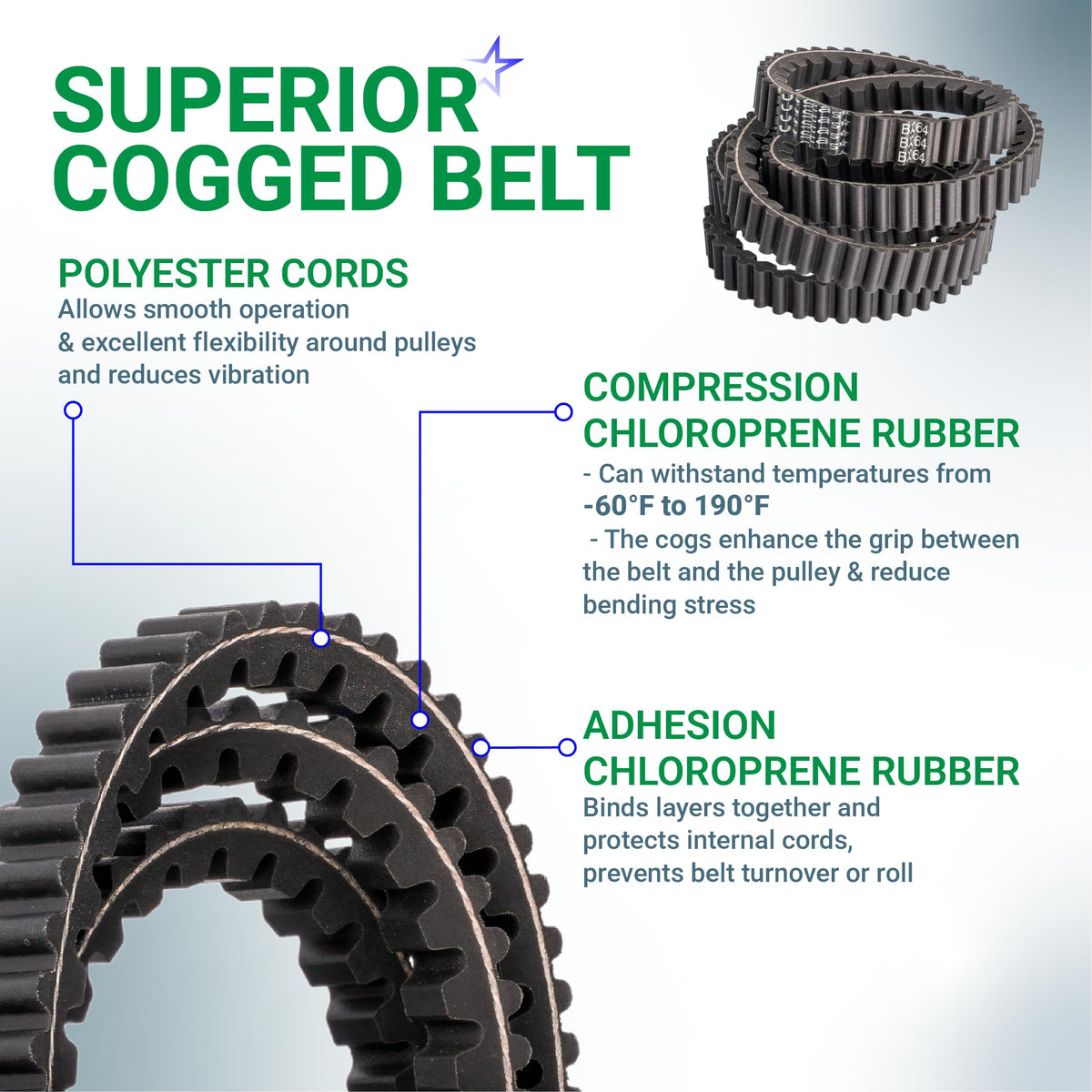

- Cogged profile allows for increased flexibility and heat dissipation.
- Oil and abrasion-resistant outer cover for extended service life.
- Precision dimensions to ensure consistent blade tip speed and power transfer.

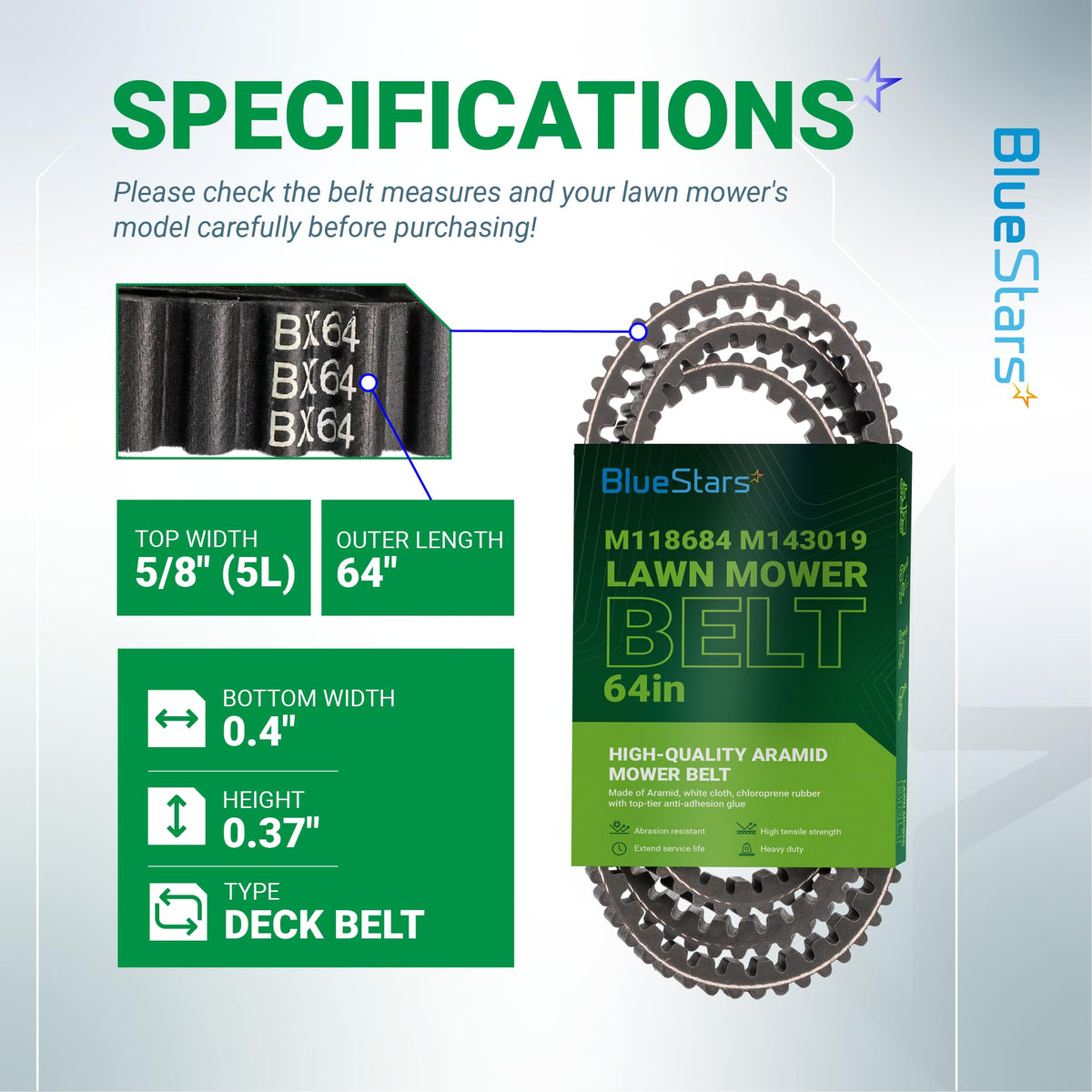

- Specifications: 5/8" width x 64" outer circumference.
Replaces / Cross-Reference Part Numbers
- M118684
- M143019
- M144677
- 265-242
- 75-300
- 175-300
- 810-CBL2487T
Compatibility & Fitment
- John Deere LX Series: LX255, LX277, LX279, LX288, LX277AWS, LX280, LX289
- John Deere GT Series: GT242, GT262, GT275
- Applicable Deck Sizes: 42C, 48-inch, and 52-inch mower decks.
When to Replace
- Visible signs of fraying, cracking, or splitting along the belt edges or inner cogs.
- Loss of tension resulting in blade slippage or inconsistent grass cutting.
- Excessive stretching that prevents the tensioning system from maintaining firm contact.
- Evidence of glazing (shiny or smooth surface) caused by chronic belt slippage.
Installation Tips
- Disconnect the spark plug wire before beginning installation to ensure the engine cannot start.
- Engage the parking brake and lower the mower deck to the lowest position for easier access.
- Remove deck covers to clear debris from pulleys before routing the new belt.
- Follow the routing diagram located on the mower deck decal to ensure correct pulley engagement.
- Verify that the belt is properly seated in all pulley grooves before tensioning the spring-loaded idler arm.
-
PART NUMBER
This Deck Belt replaces part number: J-Deere #M118684, M143019, M144677. -
SAVING SOLUTION
Enjoy the great feeling when your mower is repaired and works like before - BlueStars brings DIY solutions to help you deal with any trouble. -
FIX MOWER'S SYMPTOMS
Uneven Grass Cutting, Loud or Unusual Noises, Excessive Vibration, Burning Smell, Slipping or Stalling Blades. -
IMPORTANT NOTE
This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.

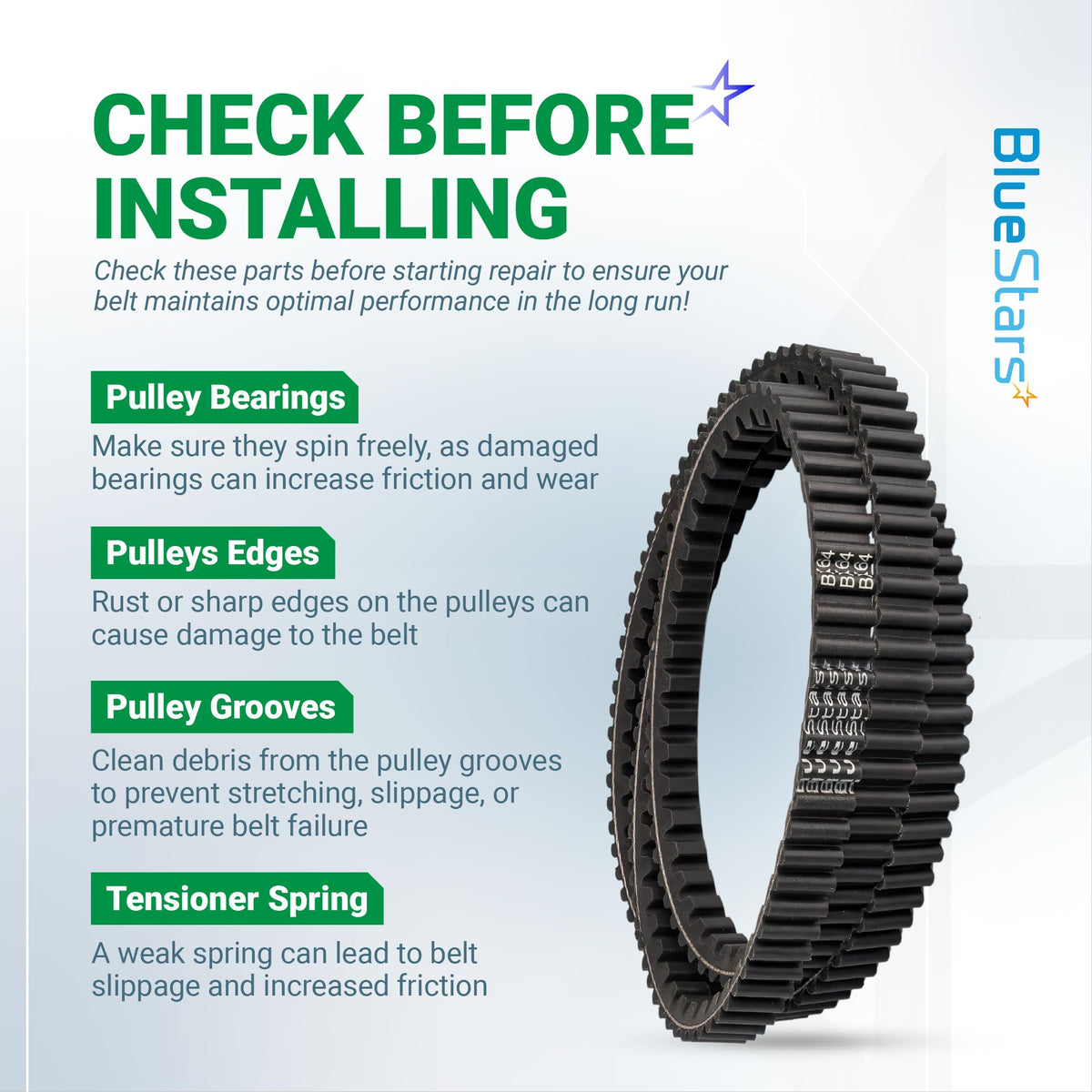

CHECK BEFORE INSTALLING
Pulley Bearings: Make sure they spin freely, as damaged bearings can increase friction and wear | Pulleys Edges: Rust or sharp edges can cause belt damage | Pulley Grooves: Clean debris from the pulley grooves | Tensioner Spring: A weak spring can lead to belt slippage and increased friction
4 SIMPLE STEPS
1. Remove key & disconnect spark plug wire(s) to prevent start; let engine cool.
2. Raise & secure deck, remove belt covers.
3. Release tension, remove old belt (note/take photos of routing).
4. Install new belt, rotate blades/spindle to check alignment & operation.
