NEMA 14-30P 14-50P Plug Interchangeable Straight
0.00
Regular price
$12.09
Regular price
Save 11%
$13.54
Sale price
$12.09
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers

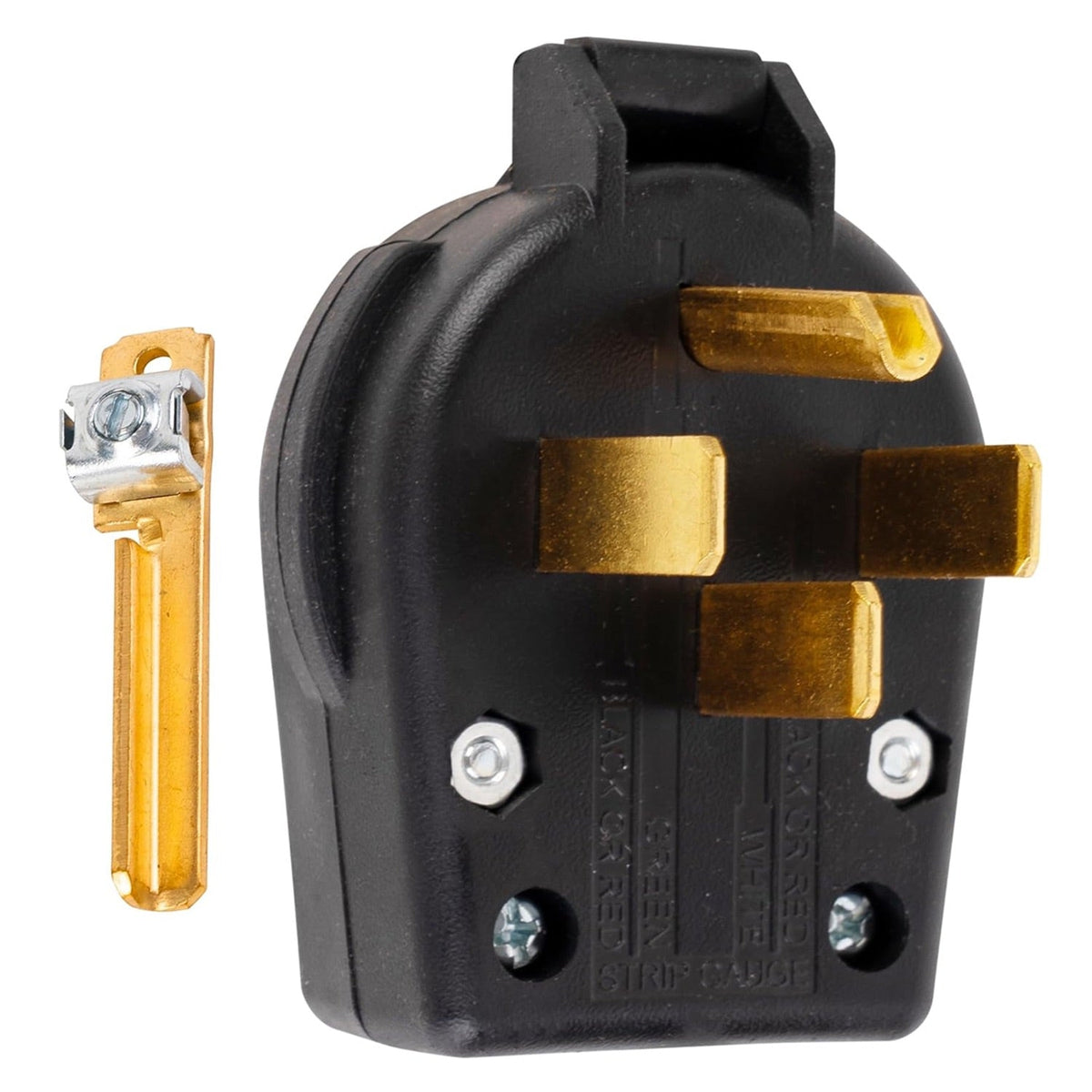

NEMA 14-30P 14-50P Plug Interchangeable Straight
Key Features
- Interchangeable design for NEMA 14-30P or NEMA 14-50P configurations.
- Dual electrical rating: 30 Amps at 125/250 Volts and 50 Amps at 125/250 Volts.
- Configuration: 3-Pole, 4-Wire, Grounding Type.
- Terminal design accepts copper wire gauges from #10 AWG to #6 AWG.
- Heavy-duty thermoplastic housing for impact resistance.
- Internal cable clamp provides secure strain relief.
- Solid brass blades for optimal conductivity.
Replaces / Cross-Reference Part Numbers
- Pass & Seymour 3867
- Serves as a replacement for most commercial and industrial grade 30A and 50A straight blade plugs from brands such as Leviton, ELEGRP, and STARELO.
- Direct replacement for any plug with NEMA 14-30P or NEMA 14-50P specifications.
Compatibility & Fitment
- Connects to NEMA 14-30R (30A) or NEMA 14-50R (50A) receptacles.
- For use with 30-amp, 4-wire dryer cords or 50-amp, 4-wire range and generator cords.
- Suitable for high-power applications including electric vehicle (EV) chargers, electric ranges, dryers, welders, and generators.
When to Replace
- Visible damage such as cracks, chips, or broken housing.
- Signs of overheating, including discoloration or melted plastic.
- Blades are bent, loose, or show signs of corrosion or arcing.
- Plug fits loosely into the receptacle, causing intermittent power.
Installation Tips
- Disconnect power at the circuit breaker before installation.
- Verify the plug configuration (30A or 50A) matches the appliance requirements and wall receptacle.
- Strip wire insulation according to the gauge strip guide on the device.

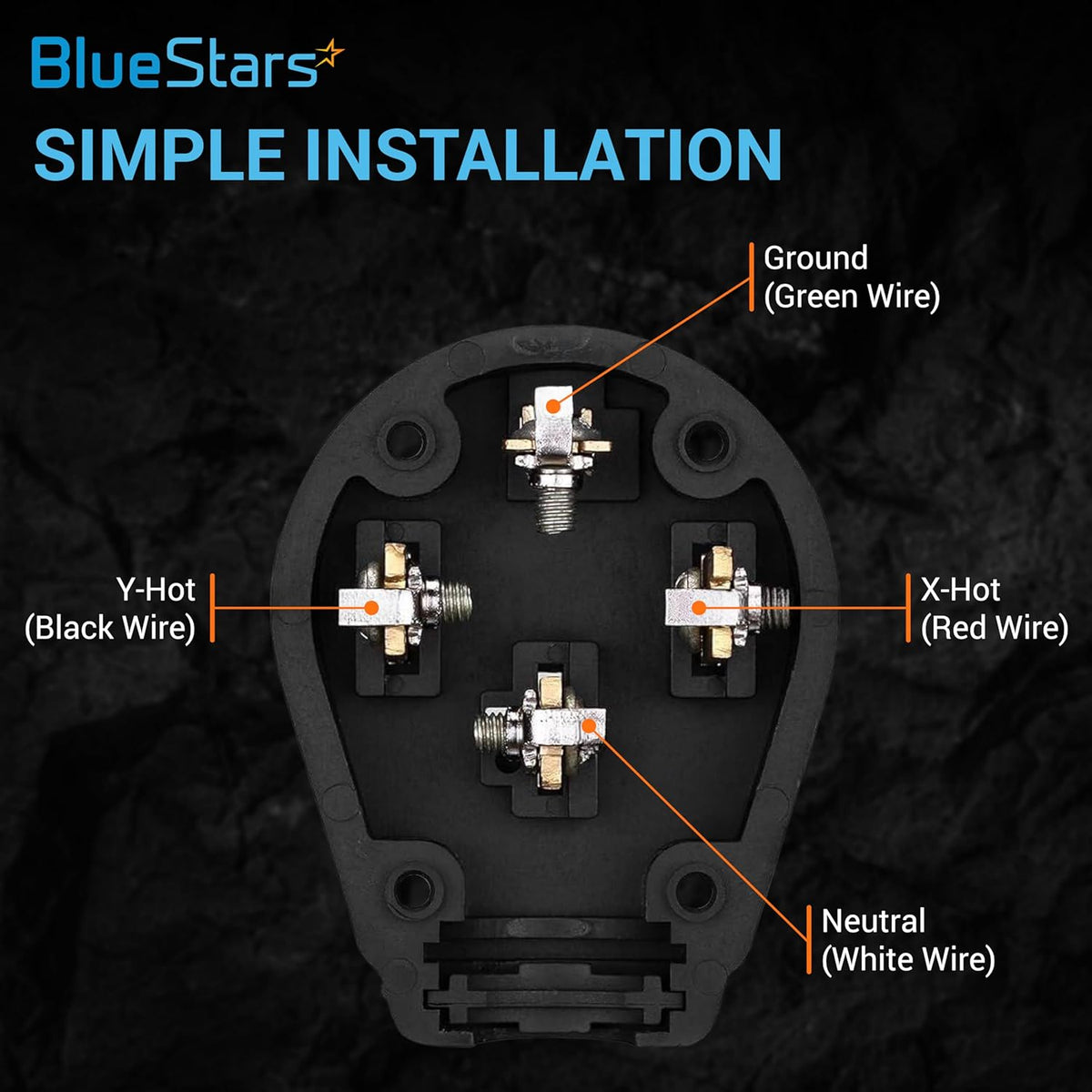

- Connect wires to the clearly marked terminals: Green to Ground (G), White to Neutral (W), Black and Red to Hot (X, Y).
- Tighten terminal screws to the manufacturer's recommended torque specification.
- Secure the cord with the internal strain relief clamp to prevent stress on terminal connections.
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
-

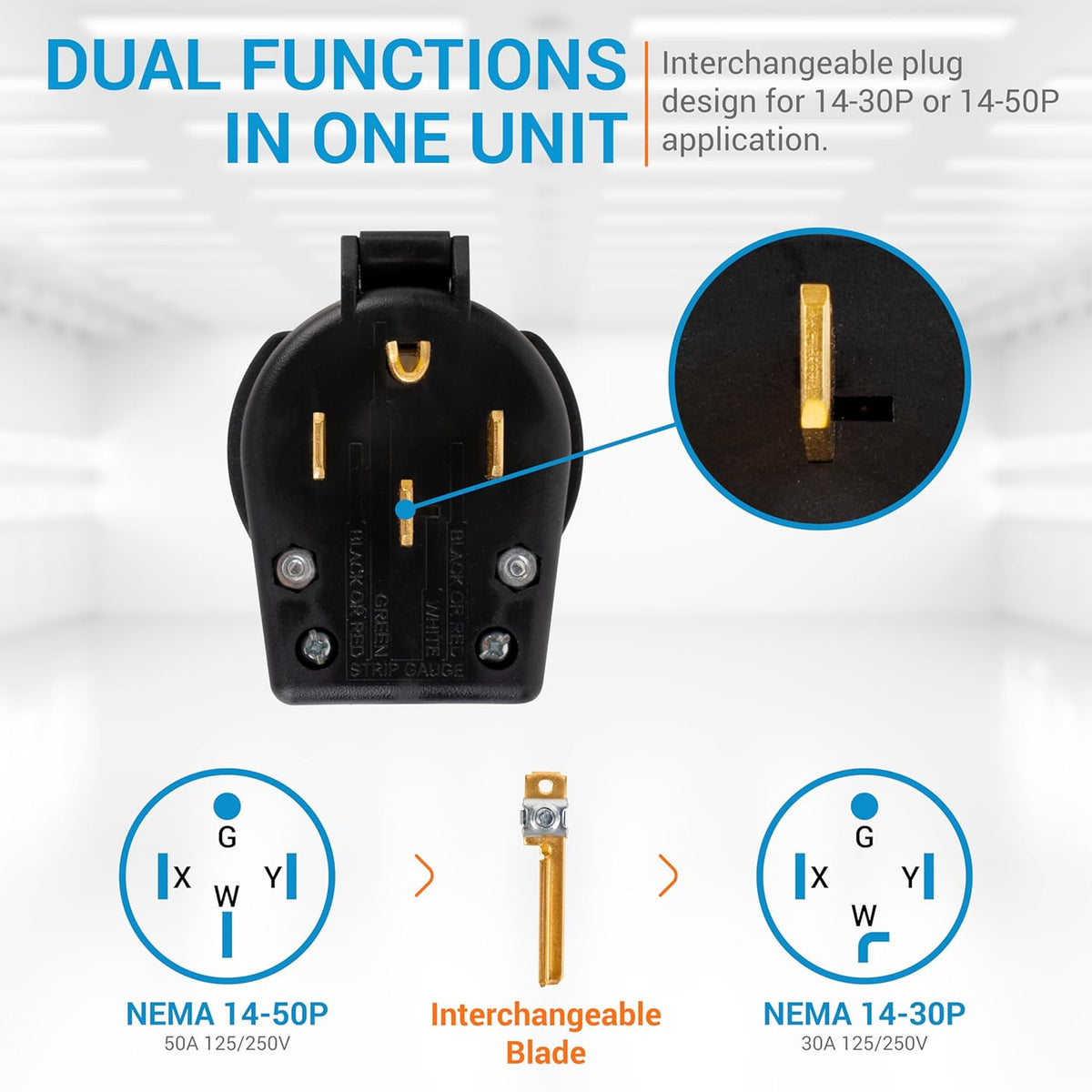

INTERCHANGEABLE PLUG DESIGN
Easily switch between NEMA 14-30P and NEMA 14-50P plugs as needed for different power requirements -

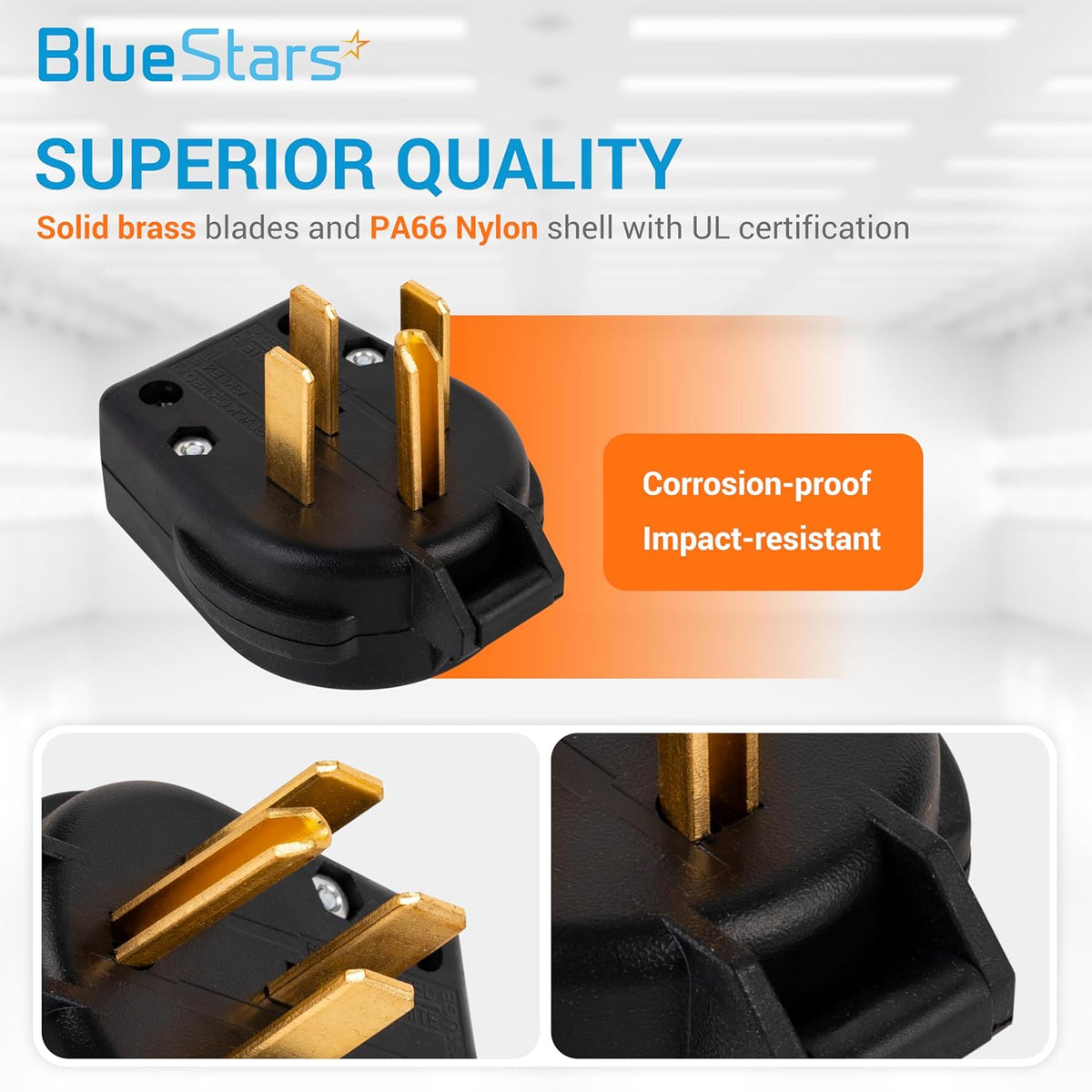

CERTIFIED MATERIAL
Built with solid brass blades and PA66 Nylon shell, offer corrosion-proof and impact-resistant properties. -
SAVING SOLUTION
BlueStars brings DIY solutions to help you deal with any trouble. -
EASY TO INSTALL
Replacing a Straight Blade Angle Plug with a 4-wire design is straightforward, requiring just a screwdriver and pliers.
CONNECTING LIVES, ENERGIZING MOMENTS
BlueStars - #1 source of high-quality electrical parts
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…

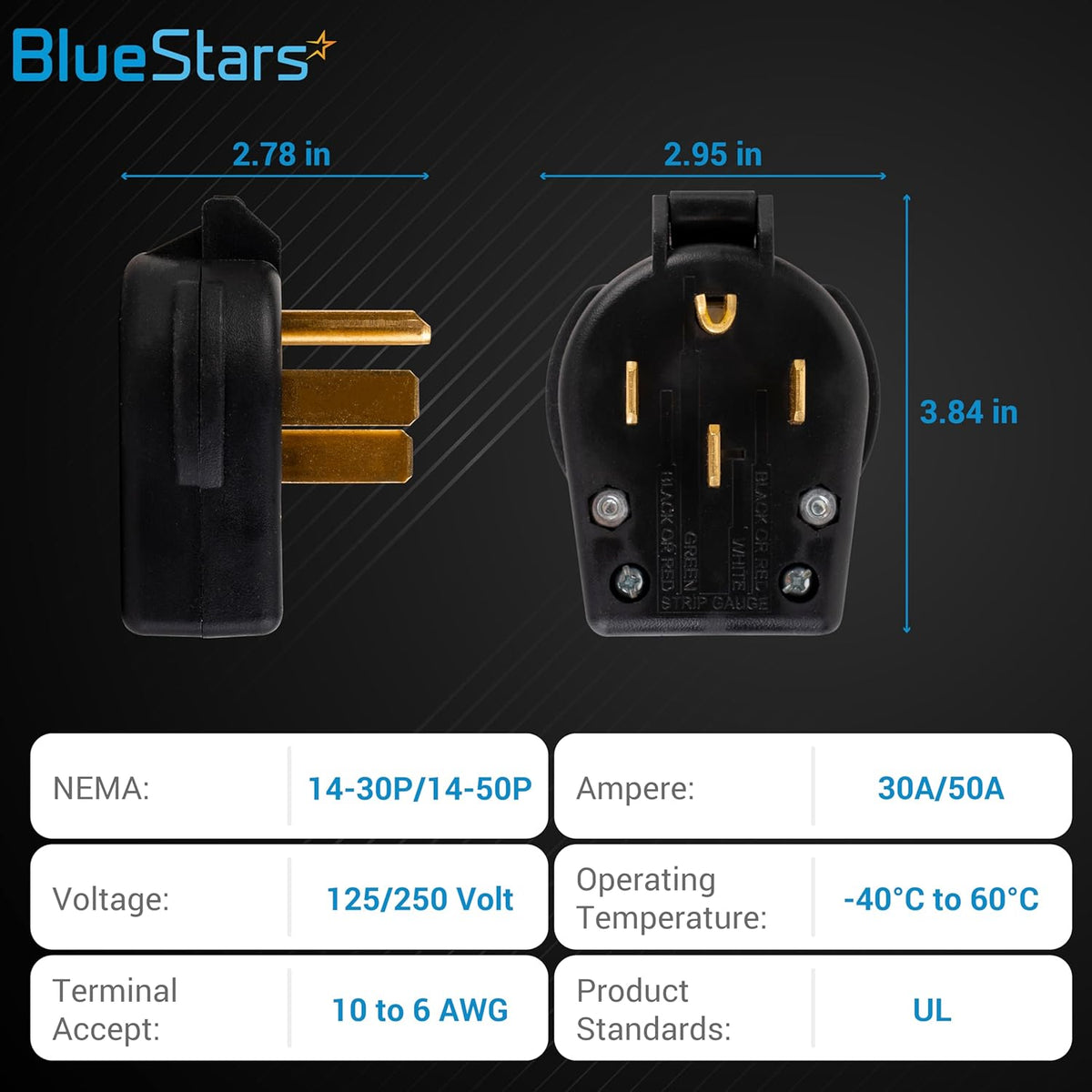

NEMA
14-30P/14-50P
Ampere
30A/50A
Voltagen
125/250 Volt
Operating Temperature
-40°C to 60°C
Terminal Accept
10 to 6 AWG
