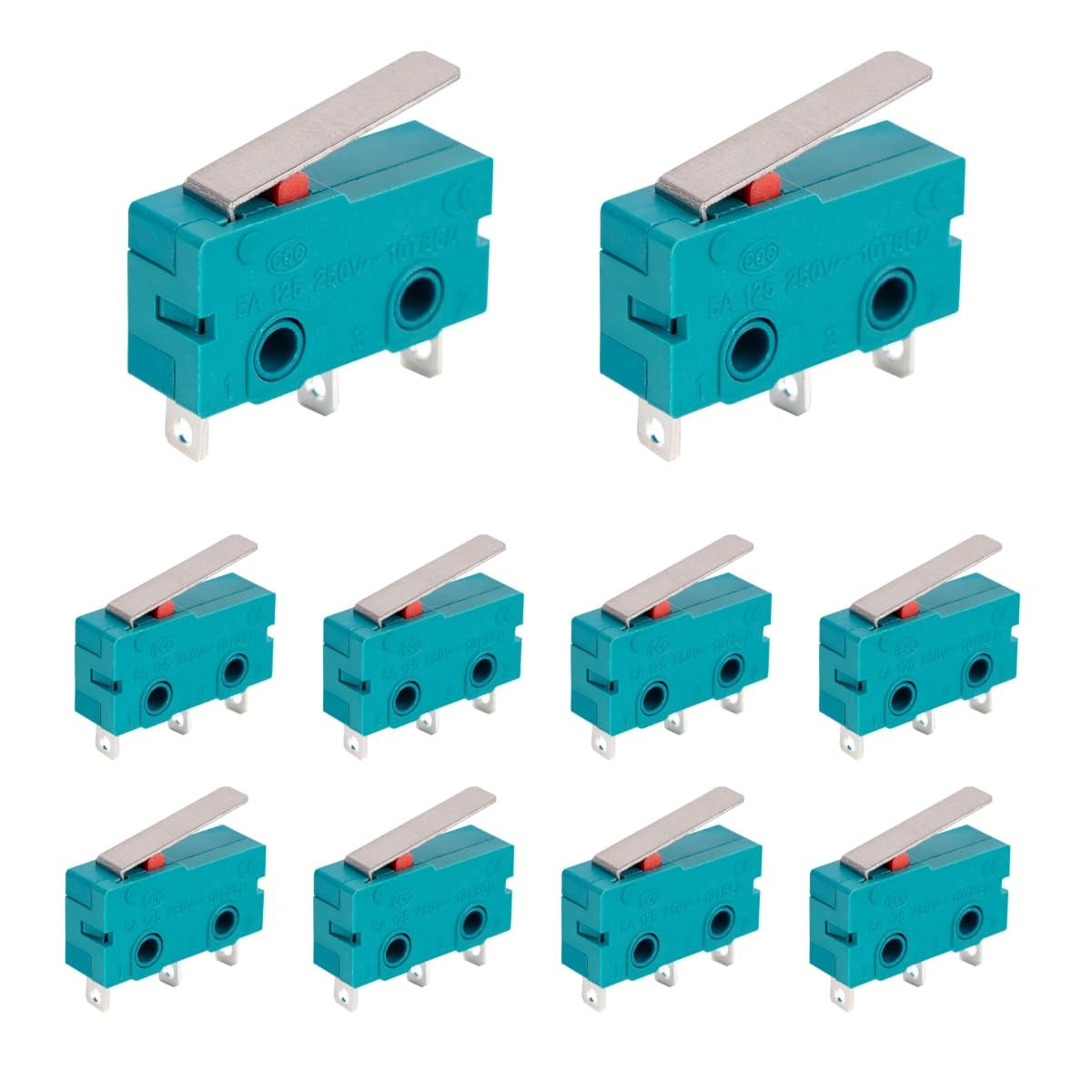

KW4-3Z-3 Micro Limit Switch, 28mm Lever, 3 Terminals, 250VAC/125VDC 5A - 10 Pack
0.00
Regular price
$7.79
Regular price
Save 11%
$8.72
Sale price
$7.79
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
KW4-3Z-3 Micro Limit Switch
Key Features
- Model: KW4-3Z-3
- Actuator: 28mm long hinge lever arm
- Terminals: 3-pin configuration for Normally Open (N/O) and Normally Closed (N/C) circuits
- Electrical Rating: 5A at 125VDC / 250VAC
- Function: Snap-action switch designed to control the movement of mechanical parts in electrical systems.
Replaces / Cross-Reference Part Numbers
- KW11-3Z
- KW11-3Z-3
- SS-01
- SS-5
- V-15-1C25
- D2SW-3L2H
- WS2-WBZ3L2B5
- LXW5-11G1
- Z-15GW22-B
Compatibility & Fitment
- Designed for use in a wide range of applications including appliances, 3D printers, CNC mills, and other general-purpose electrical automation projects.
- Fitment depends on matching physical dimensions, actuator type (28mm lever), and electrical specifications (5A, 125/250V).
When to Replace
- Switch fails to actuate or operates intermittently.
- The circuit remains open or closed regardless of lever position.
- Visible damage, such as a broken lever or cracked housing.
- Audible click is absent or feels inconsistent during actuation.
Installation Tips
- Disconnect all power to the equipment before beginning installation.

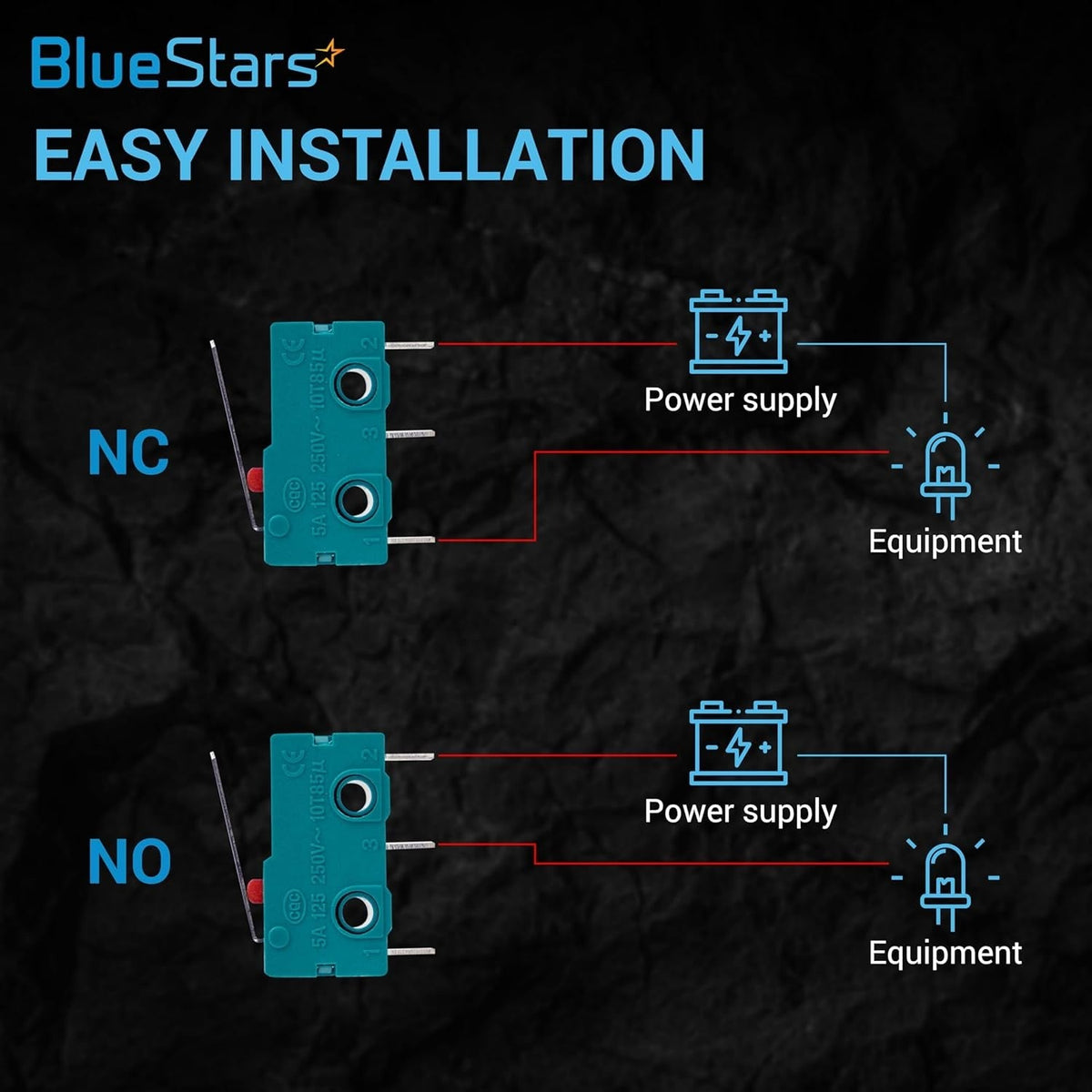

- Identify and connect wires to the appropriate terminals: Common (C), Normally Open (NO), and Normally Closed (NC).
- Ensure the mechanical component correctly engages and releases the lever without excessive force or over-travel.
- Securely mount the switch body to prevent movement during operation.
-
PRECISION CONTROL
BlueStars's Limit switches feature 3 terminals and are primarily designed to control the movement of mechanical parts. -
DURABLE BUILD

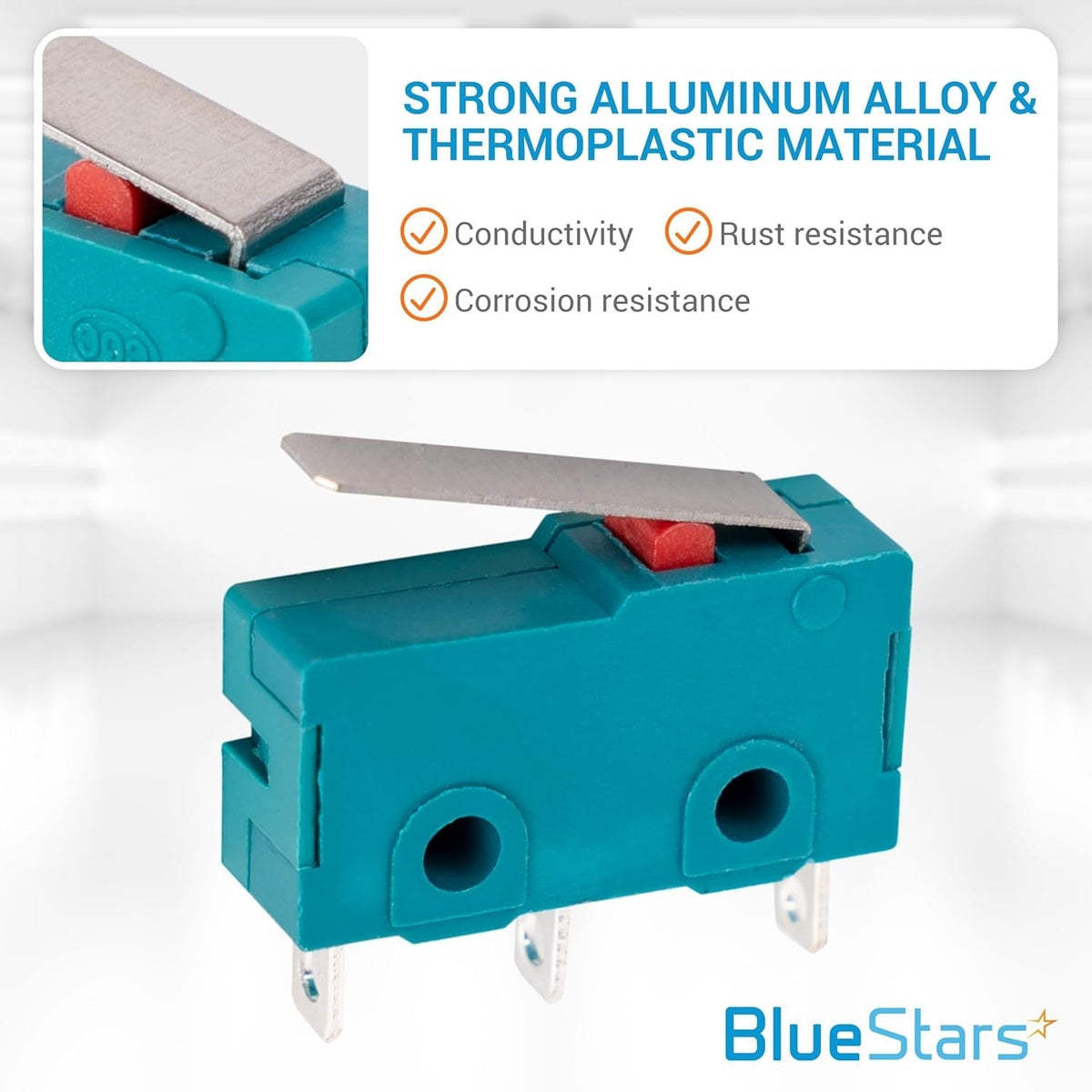

It is equipped with high-quality aluminum alloy and thermoplastic materials for superior conductivity and high reliability. -
EASY TO INSTALL
Installing a Limit Switch is easy for any DIY handyman and takes only 30 seconds. -
SAVING SOLUTION
BlueStars brings DIY solutions to help you deal with any trouble.
CONNECTING LIVES, ENERGIZING MOMENTS
BlueStars - #1 source of high-quality electrical parts
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Color
Green
Material
Plastic / Metal
Actuator Type
Short Straight Hinge Lever — Momentary / Snap Action
Lever Arm Length
28mm (1.1")
Lever Width
4mm (0.16")
Contact Configuration
SPDT (1NO + 1NC) — 3 Terminals
Rated Voltage
125V / 250V AC | 125V DC
Rated Current
5A
IP Rating
IP40 (Dustproof)

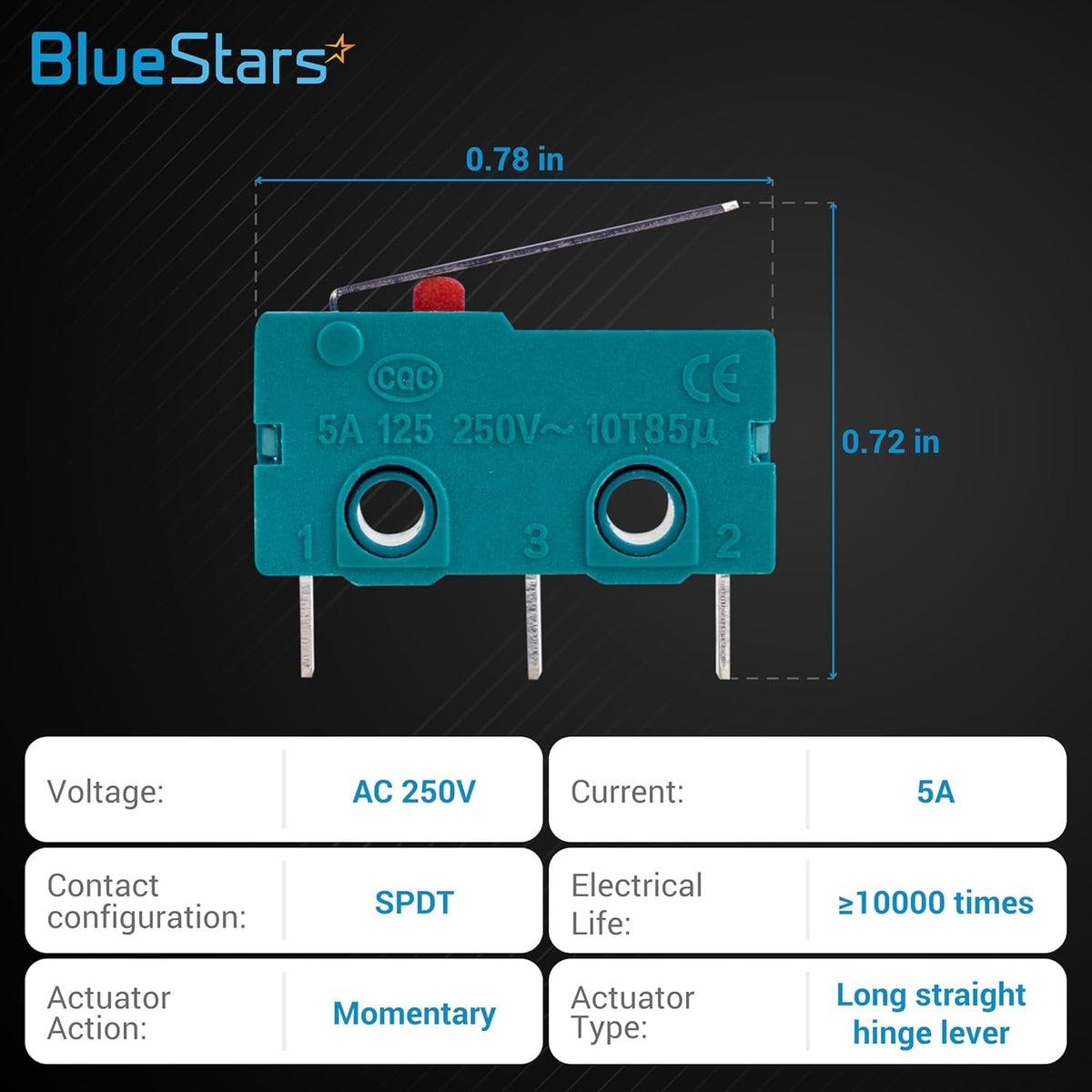

Body Size (L x W x H)
20 x 10 x 7mm (0.8" x 0.4" x 0.27")
Mounting Hole Diameter
~2mm (0.08")
Mounting Hole Center Distance
~10mm (0.4")
Operation Speed
0.1mm/s – 1m/s
Mechanical Life
1,000,000 operations min.
Certifications
UL
