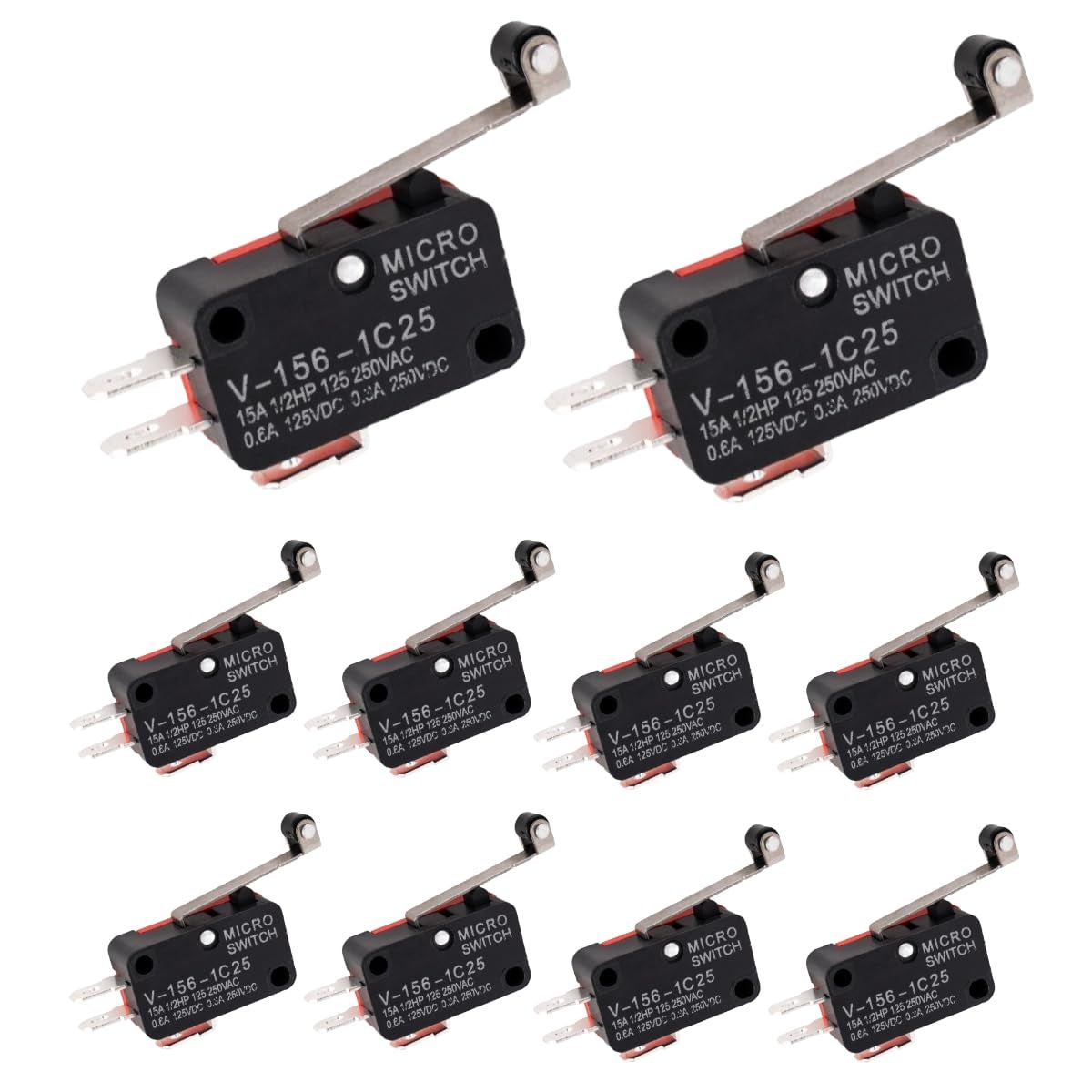

V-156-1C25 Micro Limit Switch Blade Momentary - 250VAC/125VDC 15A - 10 Pack
0.00
Regular price
$10.14
Regular price
Save 16%
$12.07
Sale price
$10.14
Fast Delivery
Delivery options available at checkout
30 Day Returns
Return Policy
CONFIRM THIS PART FITS
Enter appliance or equipment model number to verify compatibility with this part
Replaces Part Numbers
V-156-1C25 Micro Limit Switch Blade Momentary 250VAC/125VDC 15A
Key Features
- Model: V-156-1C25
- Contact Configuration: SPDT (Single-Pole, Double-Throw)
- Switch Action: Momentary
- Actuator Type: Long hinge roller lever
- Terminal Count: 3 (Common, Normally Open, Normally Closed)
- AC Rating: 15A at 125/250VAC
- DC Rating: 0.5A at 125VDC; 0.25A at 250VDC
Replaces / Cross-Reference Part Numbers
- SS-5GL2
- SS-5GL
- SHL-W155-01
- D4CC-3022
- LSE7T
- KW11-3Z-1
- KW11-7-3Z
- PC-H005-D
- ZM-V156-1C25
- TM-V156
Compatibility & Fitment
- Designed for automation, appliances, and general electrical equipment
- Suitable for controlling the movement of mechanical parts in various systems
- Compatible with electronic development boards including Arduino, ESP32, ESP8266, and Raspberry Pi
When to Replace
- Switch fails to actuate or reset consistently
- Circuit remains open or closed regardless of actuator position
- Intermittent or unreliable electrical contact during operation
- Visible signs of physical damage, arcing, or corrosion
Installation Tips
- Disconnect power from the equipment before installation.
- Ensure the actuator is correctly aligned with the moving part it is intended to contact.

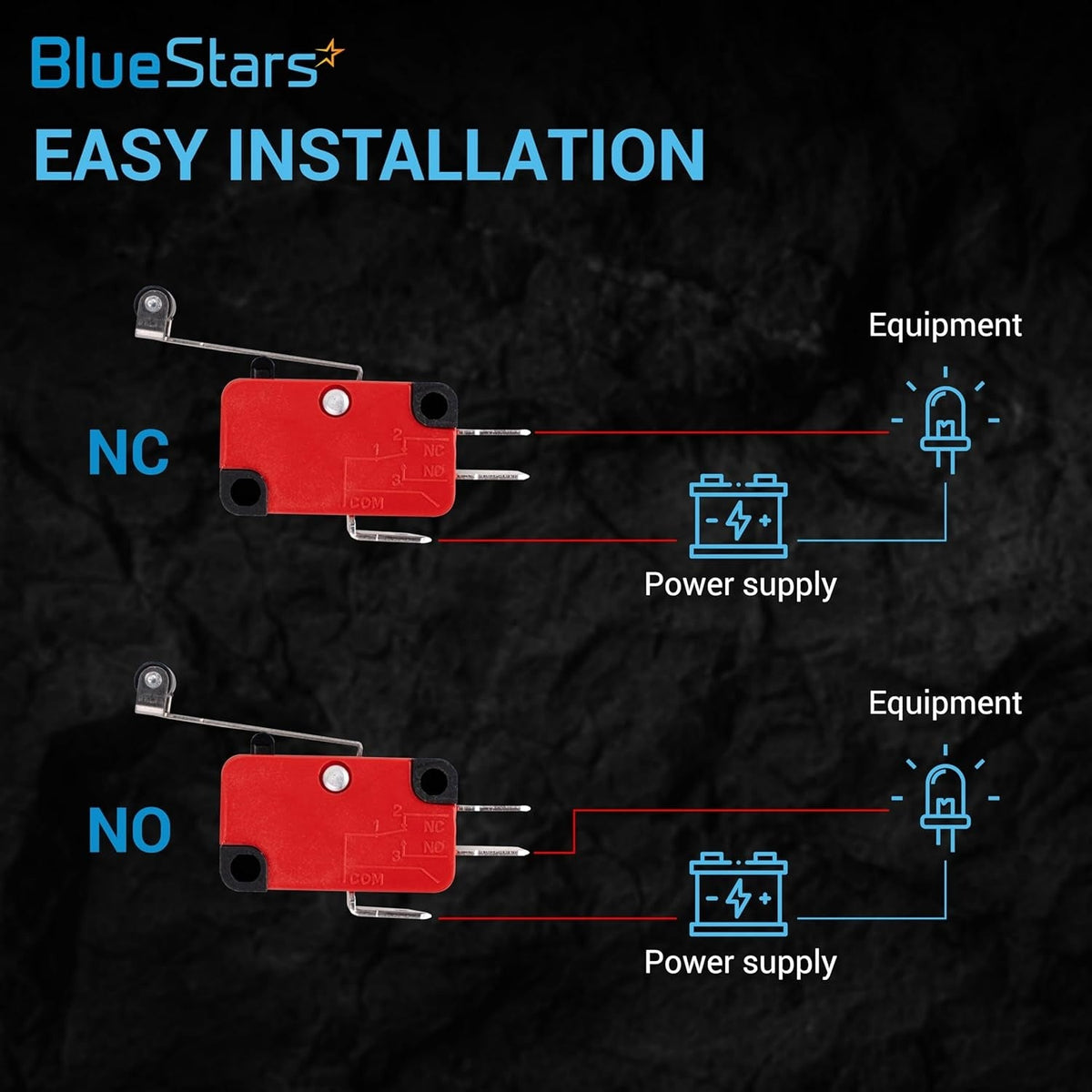

- Verify wiring to the Common (C), Normally Open (NO), and Normally Closed (NC) terminals based on circuit requirements.
- Operate the switch within its specified voltage and current ratings.
- Secure the switch body to a fixed surface to prevent movement.
-
PRECISION CONTROL
BlueStars's Limit switches feature 3 terminals and are primarily designed to control the movement of mechanical parts. -

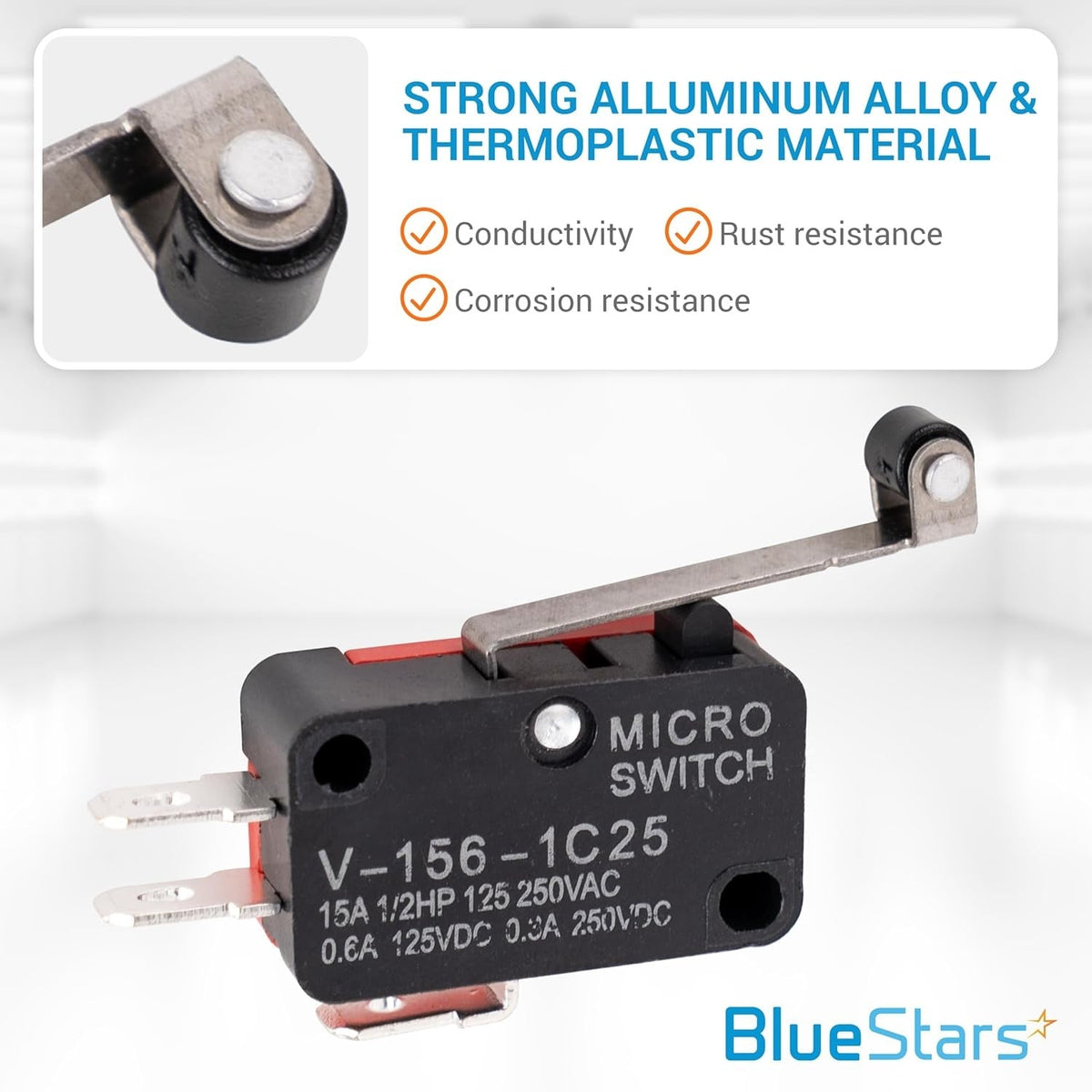

DURABLE BUILD
It is equipped with high-quality aluminum alloy and thermoplastic materials for superior conductivity and high reliability. -
EASY TO INSTALL
Installing a Limit Switch is easy for any DIY handyman and takes only 30 seconds. -
SAVING SOLUTION
BlueStars brings DIY solutions to help you deal with any trouble.
CONNECTING LIVES, ENERGIZING MOMENTS
BlueStars - #1 source of high-quality electrical parts
Compatible Models
Locate the model number of your appliance or equipment on the manufacturer's label and use it to check compatibility before ordering
Loading compatible models…
Color
Black
Material
Thermosetting Plastic (body) / Metal (contacts & lever)
Contact Configuration
SPDT (1NC + 1NO) — 3 Terminals
AC Rating
15A / 250V AC
DC Rating
0.6A / 125V DC | 0.3A / 250V DC
Actuator Type
Hinge Roller Lever (Long Straight) — Momentary / Snap Action
Operating Force (OF)
Max 250g
Return Force (RF)
Min 25g
Pre-Travel (PT)
Max 4.0mm
Over-Travel (OT)
Min 1.6mm
Operating Position (OP)
20.7 ±1.2mm
Operating Speed
0.1mm/s – 1m/s
Item Weight
~50g
