R0456500 Temperature Sensor

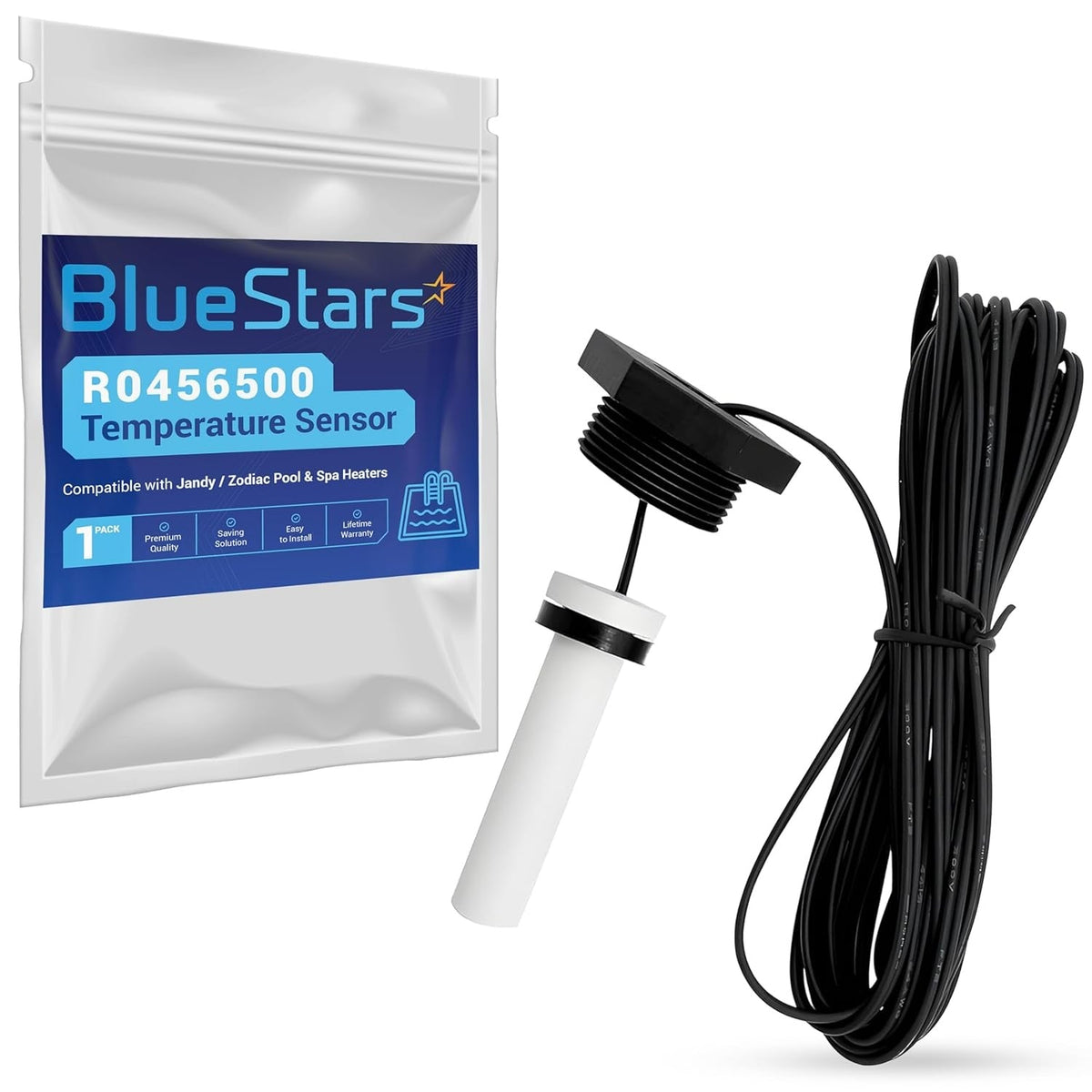

R0456500 temperature sensor for Jandy and Zodiac pool heaters with packaging and wired probe.

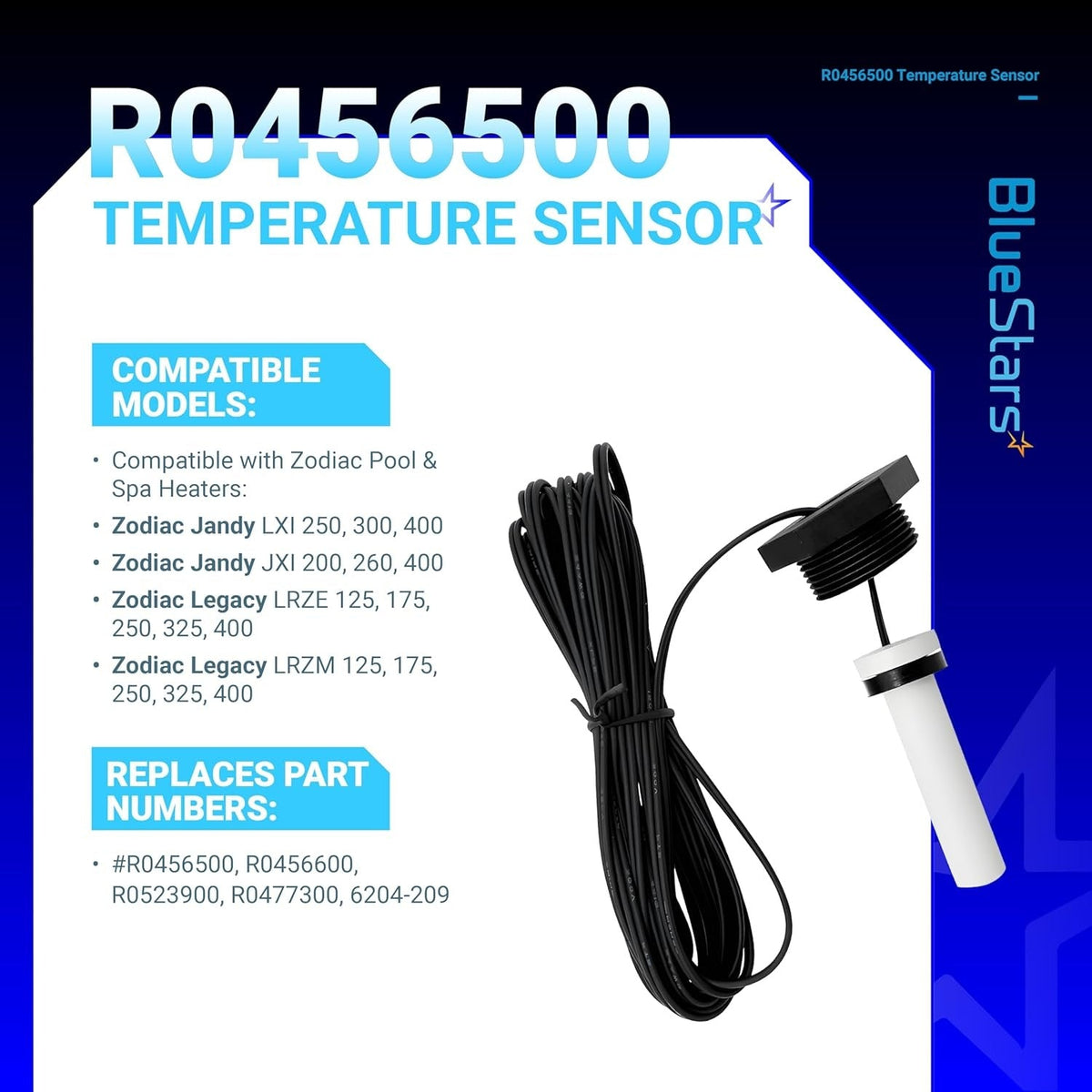

R0456500 temperature sensor with long wire and threaded mounting plug for Zodiac Jandy pool and spa heaters.

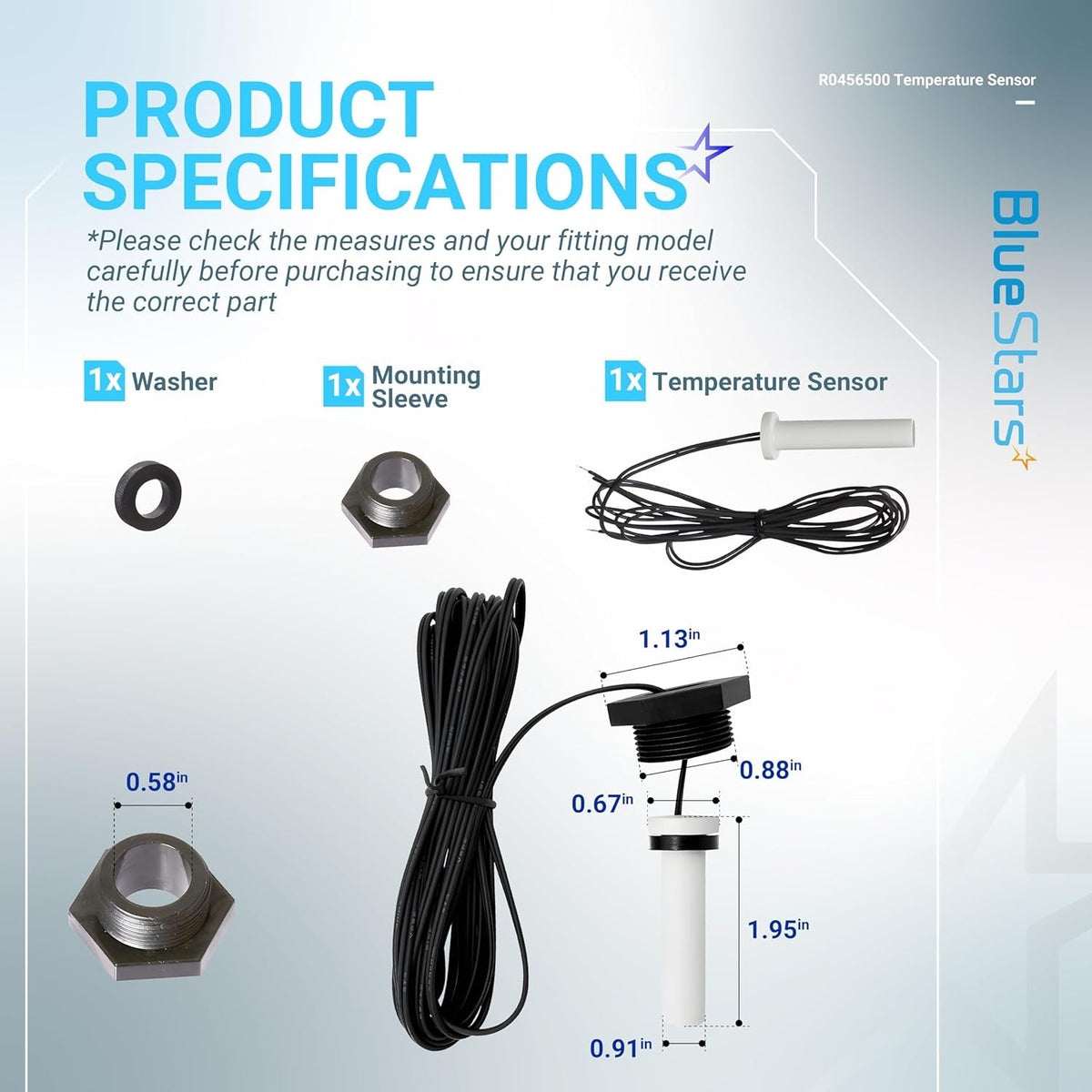

R0456500 temperature sensor kit showing components, dimensions, and assembly specifications.

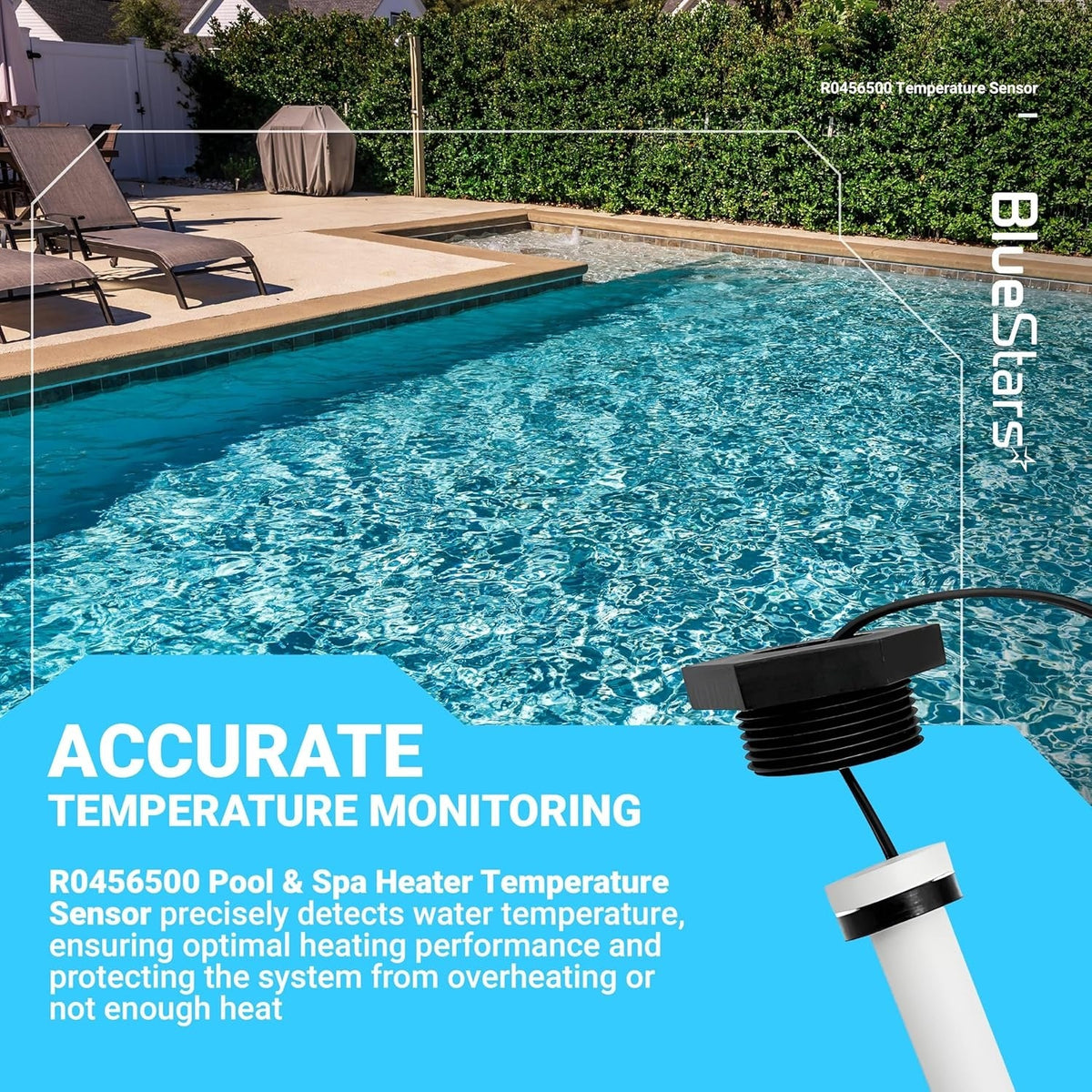

R0456500 pool and spa heater temperature sensor with threaded mounting cap for accurate water temperature monitoring.

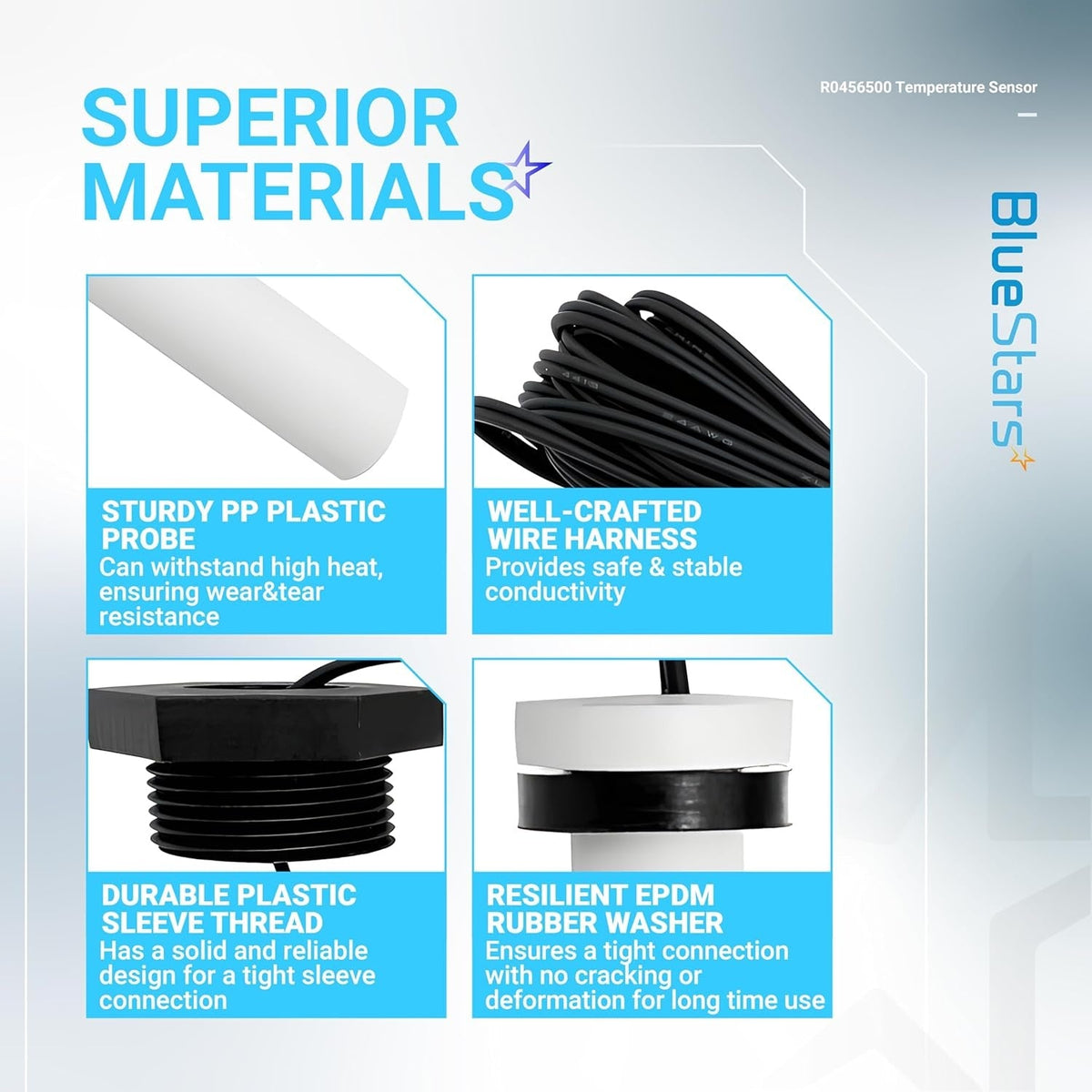

Infographic showing material features of the R0456500 temperature sensor including probe, wire harness, thread, and washer.

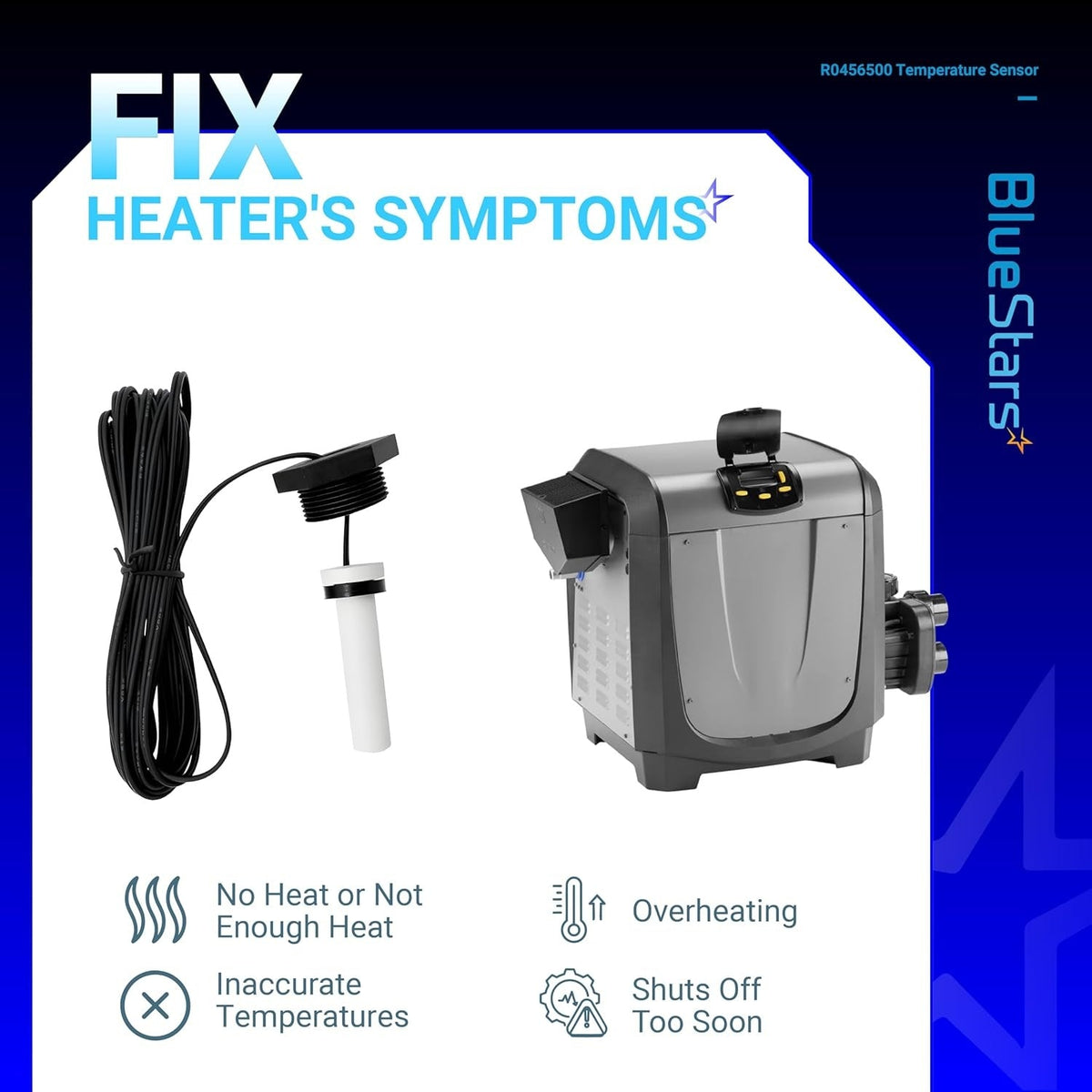

R0456500 temperature sensor for pool heater showing common heating symptoms and troubleshooting guide.

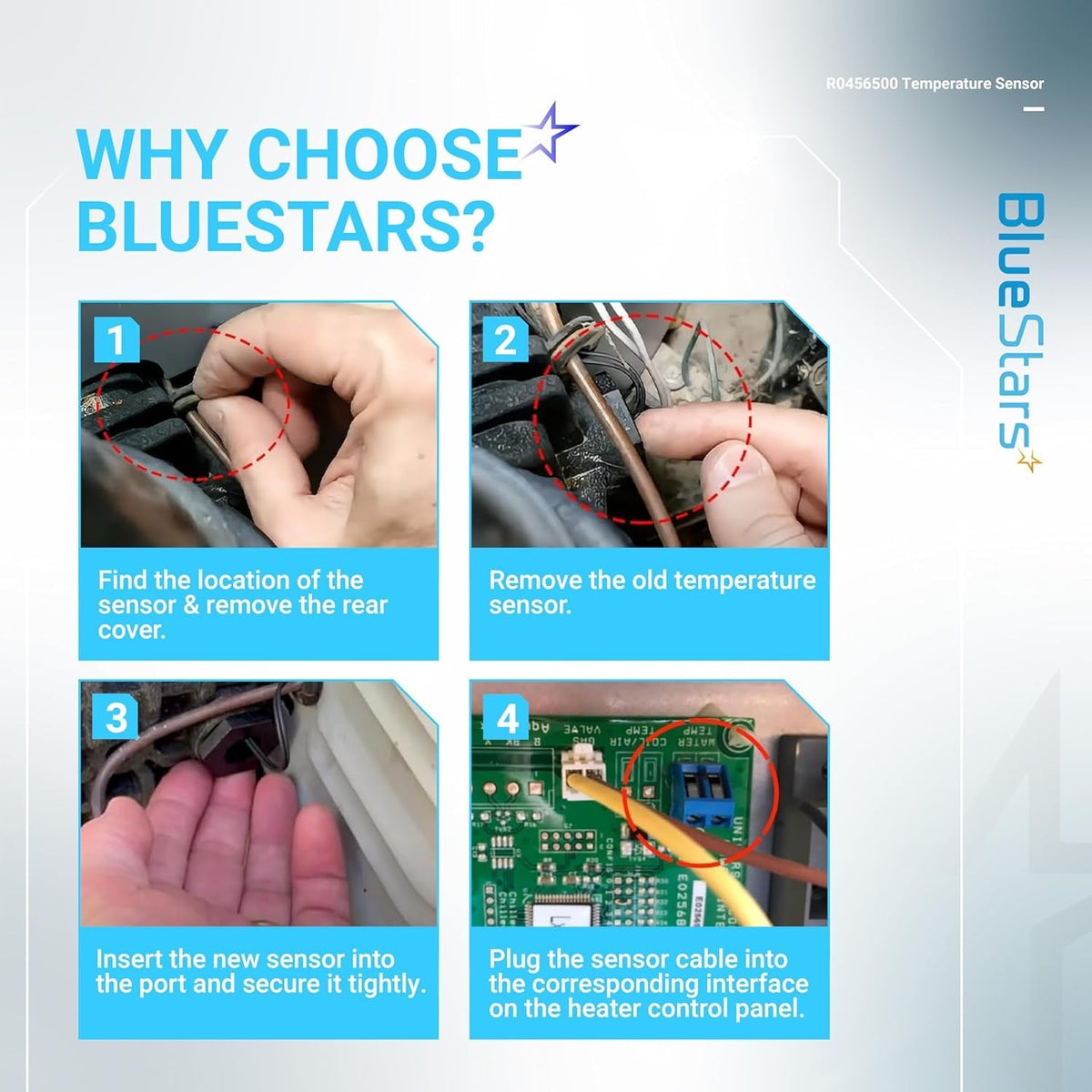

Four-step installation guide for R0456500 temperature sensor showing removal and connection to control panel.
R0456500 pool temperature sensor with long black cable displayed over a family swimming in a pool.
R0456500 temperature sensor for Jandy and Zodiac pool heaters with packaging and wired probe.
R0456500 temperature sensor with long wire and threaded mounting plug for Zodiac Jandy pool and spa heaters.
R0456500 temperature sensor kit showing components, dimensions, and assembly specifications.
R0456500 pool and spa heater temperature sensor with threaded mounting cap for accurate water temperature monitoring.
Infographic showing material features of the R0456500 temperature sensor including probe, wire harness, thread, and washer.
R0456500 temperature sensor for pool heater showing common heating symptoms and troubleshooting guide.
Four-step installation guide for R0456500 temperature sensor showing removal and connection to control panel.
R0456500 pool temperature sensor with long black cable displayed over a family swimming in a pool.
Lifetime Warranty

R0456500 Temperature Sensor

Save 13%
0.00
$31.38
$36.09
$31.38
Out of stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

R0456500 Temperature Sensor

Key Features

  • Direct replacement temperature sensor for pool and spa heaters
  • Provides accurate water temperature measurement to the heater control system
  • Kit often includes the sensor, mounting sleeve, and o-ring gasket

Replaces / Cross-Reference Part Numbers

  • Manufacturer: Jandy / Zodiac / Teledyne Laars
  • Part Number: R0456500
  • UPC: 052337023283

Compatibility & Fitment

  • Fits Jandy Legacy LRZE and LRZM heater models: 125, 175, 250, 325, 400
  • Fits Jandy LXi Low NOx heater models
  • Fits Jandy JXi heater models: 200, 260, 400

When to Replace

  • Heater displays error codes related to the temperature sensor
  • Inaccurate or fluctuating water temperature readings on the heater display
  • The heater fails to fire or maintain a set temperature due to sensor failure

Installation Tips

  • Always disconnect all electrical power to the heater before performing service
  • The sensor is typically located on the left side of the heater's manifold assembly
  • Ensure the o-ring gasket is properly seated to prevent leaks
  • Refer to the heater's service manual for specific installation diagrams and procedures
Product image 1
Product image 2
Product image
Product image 1
Product image 2
Product image
  • COMPATIBLE MODELS

    COMPATIBLE MODELS

    Zodiac Pool & Spa Heaters Jandy LXI 250, 300, 400; Jandy JXI 200, 260, 400; Legacy LRZE 125, 175, 250, 325, 400; Legacy LRZM 125, 175, 250, 325, 400
  • IDEAL REPLACEMENT

    IDEAL REPLACEMENT

    This Assembly includes 1x Temperature Sensor, 1x Mounting Sleeve, 1x Washer. It replaces #R0456500, R0456600, R0523900, R0477300, 6204-209
  • SAVING SOLUTION

    SAVING SOLUTION

    BlueStars brings DIY solutions to help deal with any trouble
  • IMPORTANT NOTE

    IMPORTANT NOTE

    This is a replacement part designed to be compatible with certain appliances. Any brand names mentioned are used solely to indicate compatibility.
#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

#1 SOURCE OF HIGH-QUALITY REPLACEMENT PARTS

Enjoy the comfort that our small yet mighty parts bring to your pool for seamless swimming experience

FAQ

This sensor is compatible with Zodiac and Jandy Legacy LRZE, LRZM, JXI, and LXI series pool and spa heaters, specifically the 125, 175, 200, 250, 260, 300, 325, and 400 models.
This unit serves as a direct replacement for OEM part number R0456500. It also cross-references with R0456600, R0477300, R0523900, and the 6204-209 thermistor.
If your heater is displaying inaccurate water temperature readings, failing to fire when the set temperature is reached, or showing specific sensor-related error codes on the control panel, the thermistor probe may be faulty. It is responsible for detecting the water temperature as it enters the heater, so a failure often prevents the system from cycling correctly.
Replacing the sensor is a straightforward process that typically takes 15 to 30 minutes. You will need basic hand tools to access the heater's electrical compartment and remove the old probe. Ensure the power to the heater is completely disconnected at the breaker before beginning any work.
Before installation, ensure the pool pump is turned off and the system is depressurized to prevent water leakage when removing the old sensor. When installing the new probe, ensure it is seated properly to maintain an accurate seal and connection to the heater’s control board.
