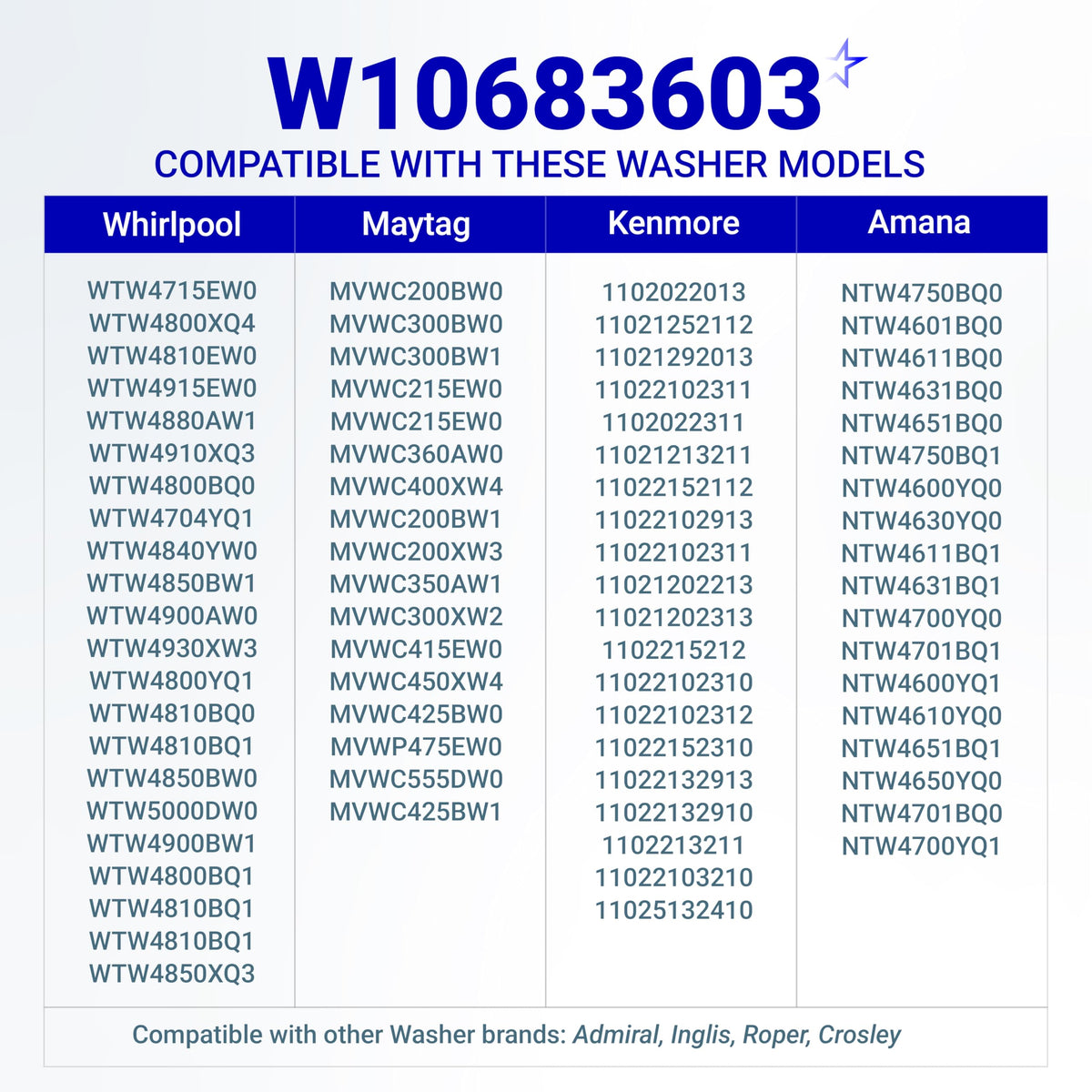

Compatibility chart for W10683603 washer replacement part listing Whirlpool, Maytag, Kenmore, and Amana model numbers.
Washing machine water inlet valve assembly showing common repair symptoms like leaking or failure to fill.

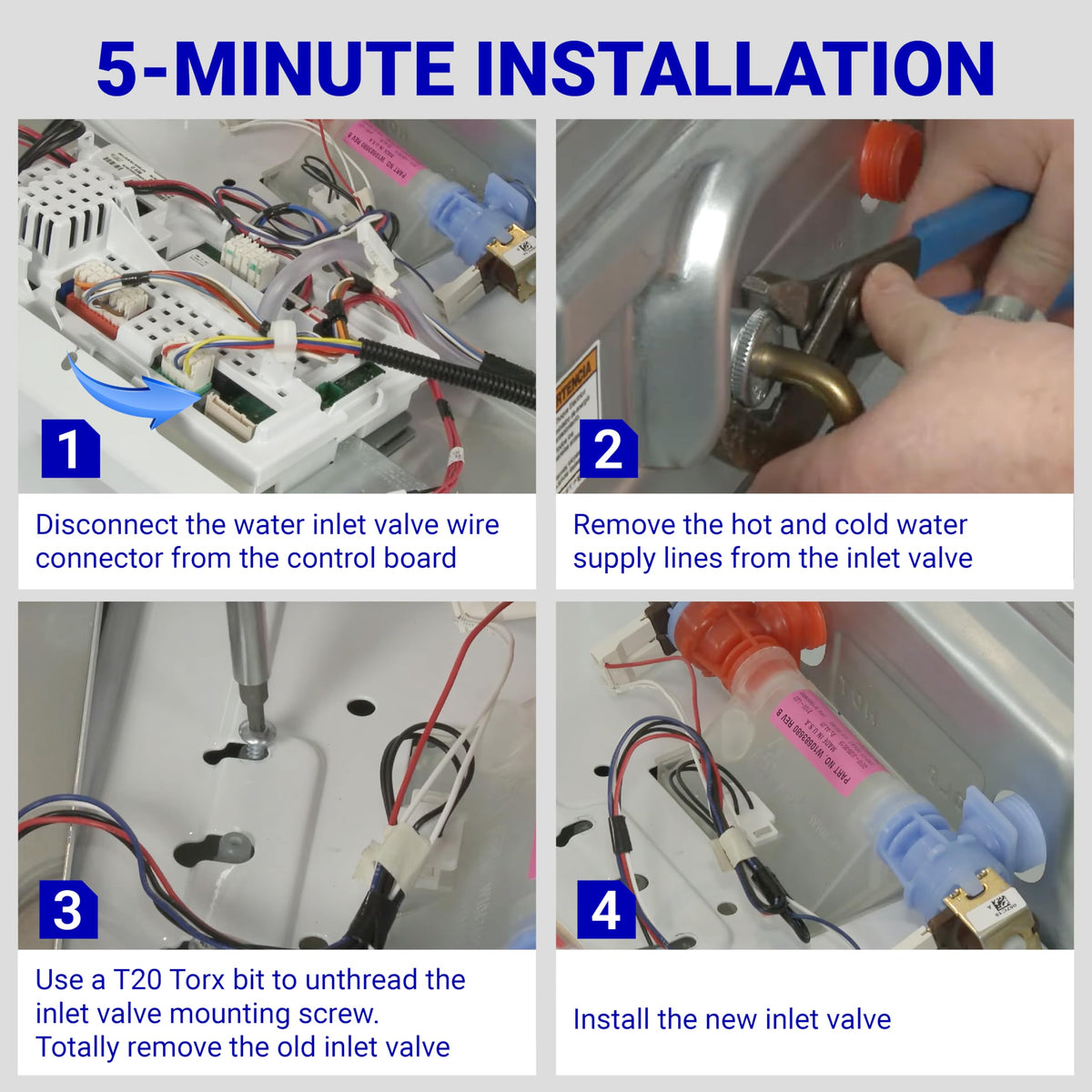

Four-step installation guide for replacing a washing machine water inlet valve.
Replacement washing machine water inlet valve with blue and red connectors on a white housing.
W10683603 washer water inlet valve with blue and red ports and attached wiring harness.
W10683603 washer water inlet valve with dimensions diagram showing red and blue hose connections.
Washing machine dual water inlet valve with red and blue connectors for precise water flow control.
Durable ABS plastic washing machine water inlet valve with reinforced solenoids and wiring harness details.
Compatibility chart for W10683603 washer replacement part listing Whirlpool, Maytag, Kenmore, and Amana model numbers.
Washing machine water inlet valve assembly showing common repair symptoms like leaking or failure to fill.
Four-step installation guide for replacing a washing machine water inlet valve.
Replacement washing machine water inlet valve with blue and red connectors on a white housing.
Lifetime Warranty

W10683603 Washer Water Inlet Valve - For Whirlpool Crosley Maytag Inglis Roper Washer

Save 35%
0.00
$20.87
$32.10
$20.87
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

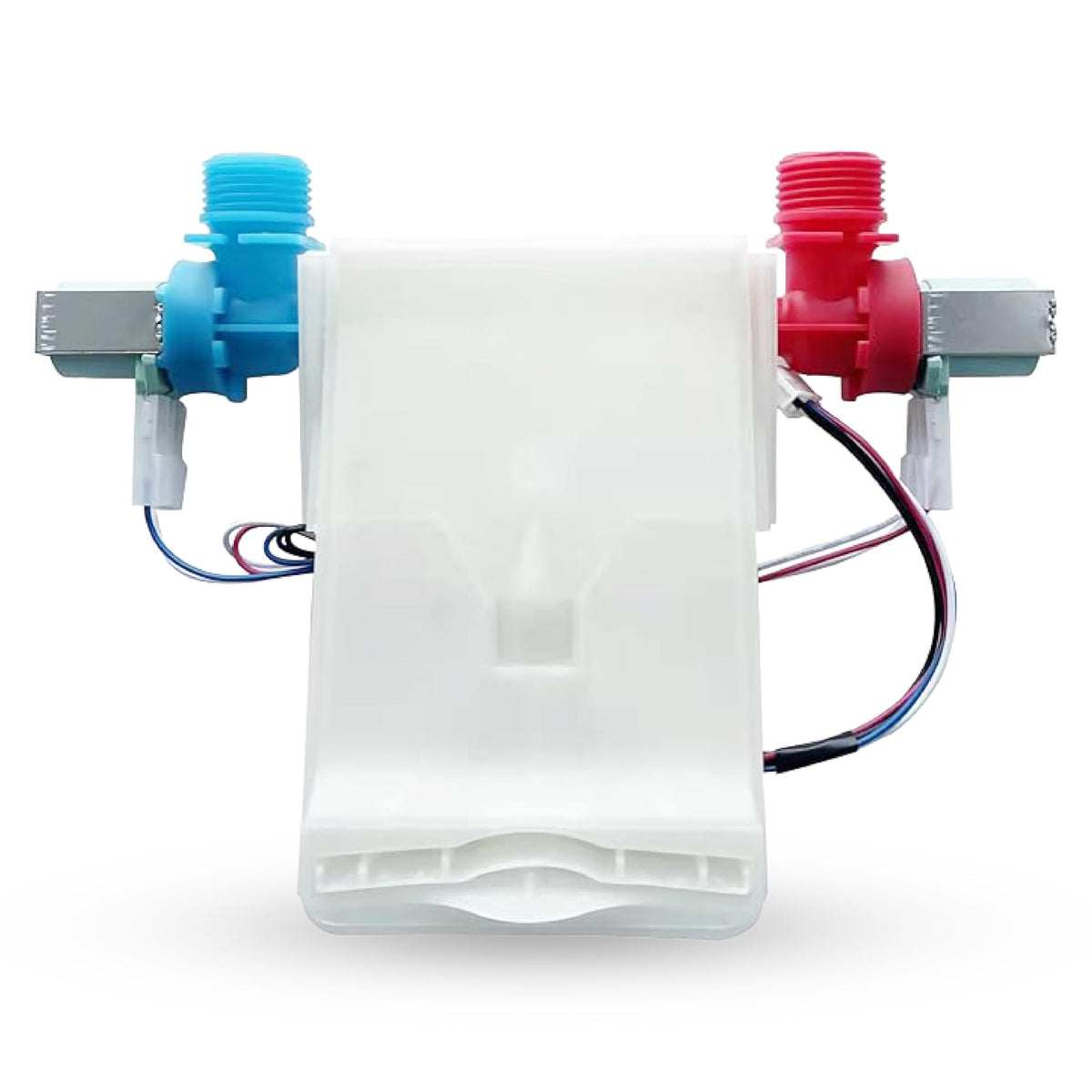

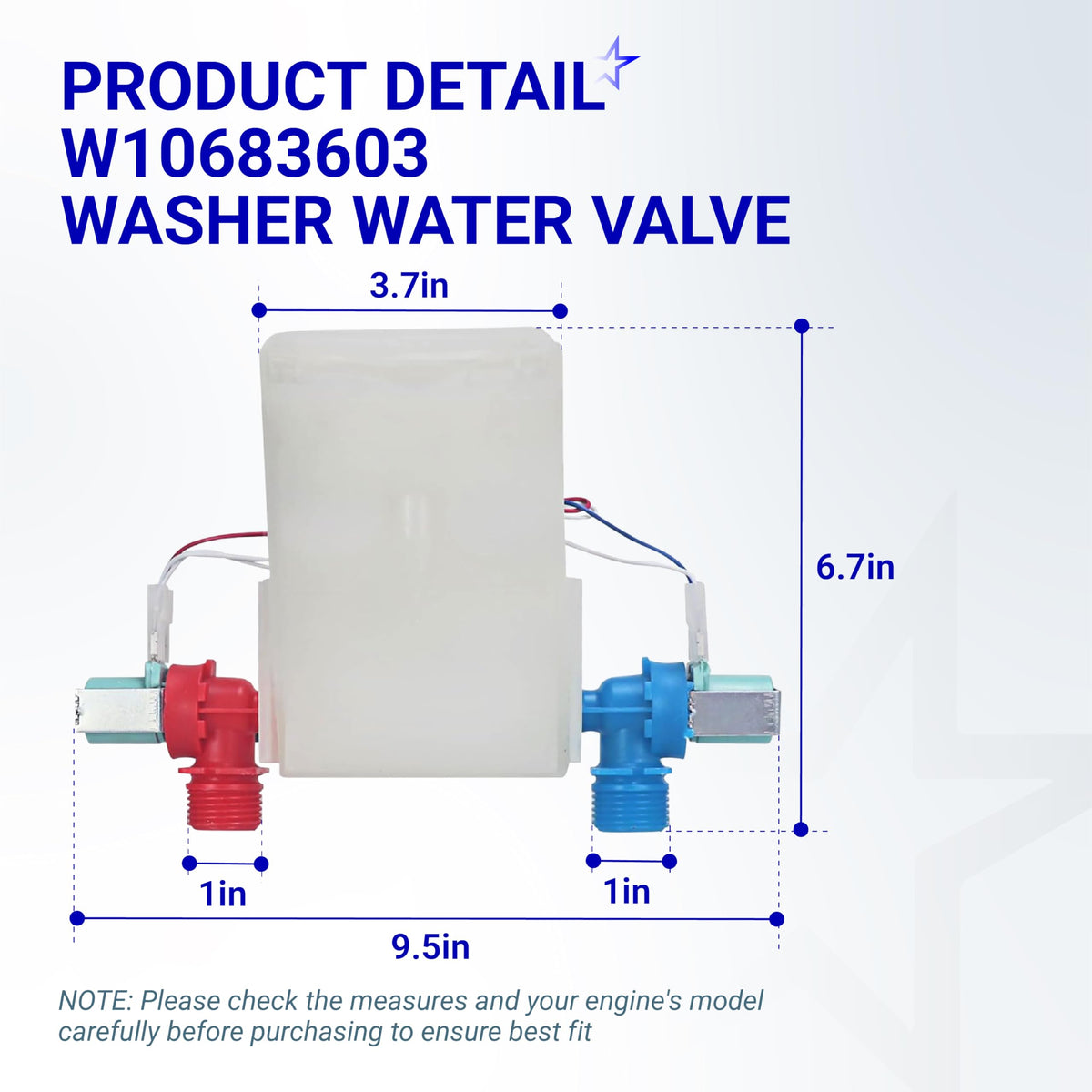

W10683603 Washer Water Inlet Valve

Key Features

  • Regulates cold and hot water flow into the washer tub.
  • Dual-solenoid design for precise intake control.

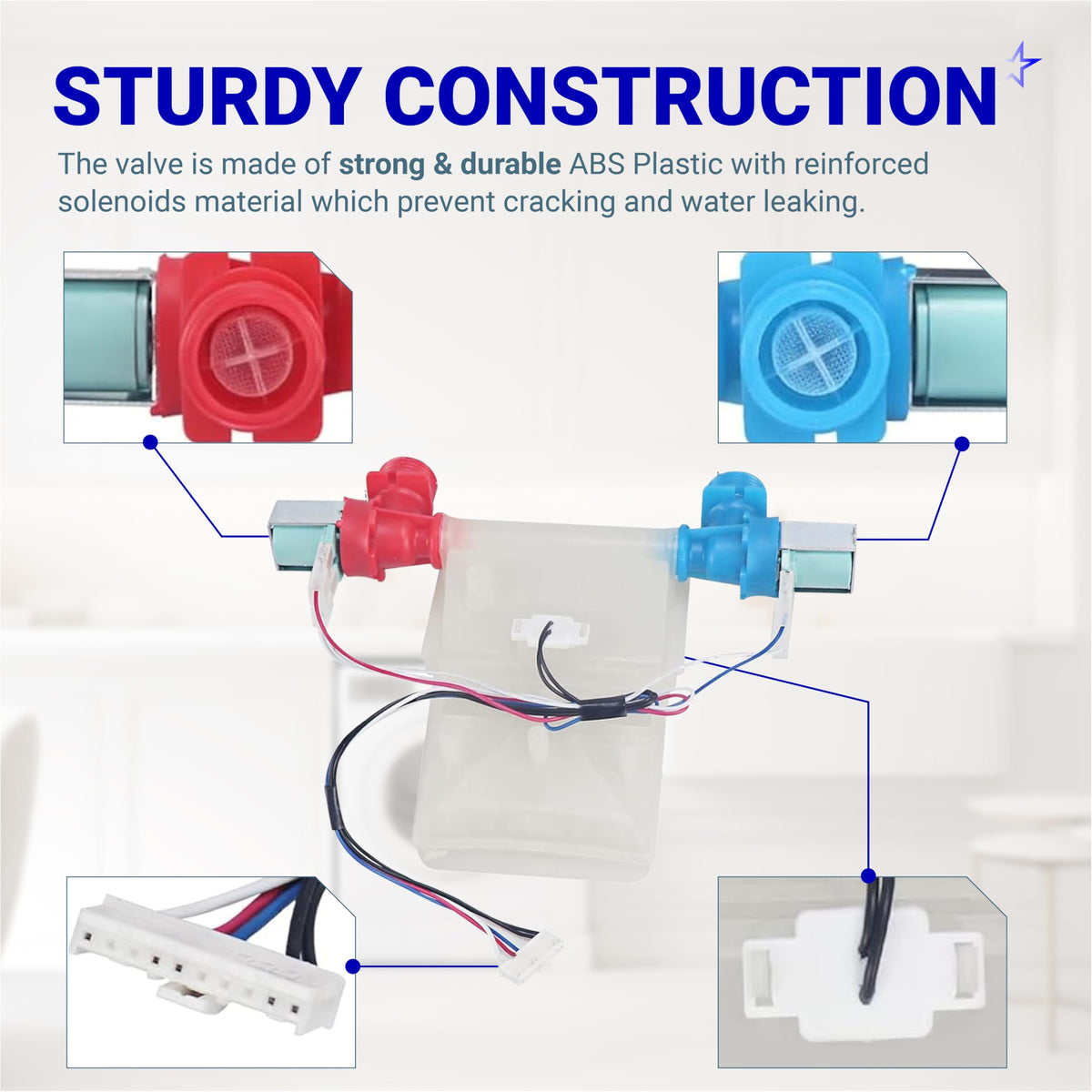

  • Durable construction resistant to mineral buildup and pressure fluctuations.
  • Standard electrical connection ports for plug-and-play setup.

Replaces / Cross-Reference Part Numbers

  • WPW10683603
  • W10683603
  • W10423125
  • W10501149
  • W10683680
  • 3451320

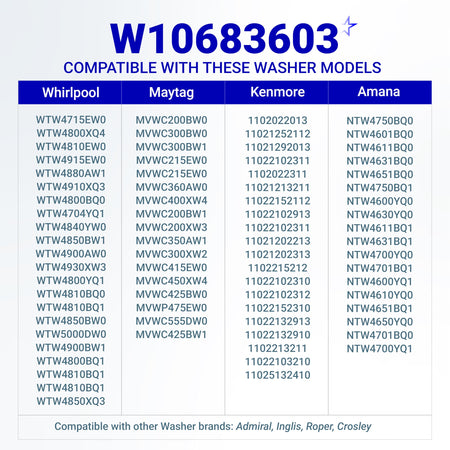

Compatibility & Fitment

  • Compatible with select top-load washing machines manufactured under Whirlpool, Maytag, Kenmore, Amana, Crosley, Inglis, Admiral, and Roper brands.
  • Verify compatibility with your specific appliance model number prior to purchase to ensure proper fitment and electrical specifications.

When to Replace

  • Washer fails to fill with water or fills extremely slowly.
  • Water continues to flow into the tub even when the washer is powered off.
  • Visible leaks originating from the rear of the machine near the water supply hoses.
  • Humming or vibrating noises originating from the valve assembly during fill cycles.

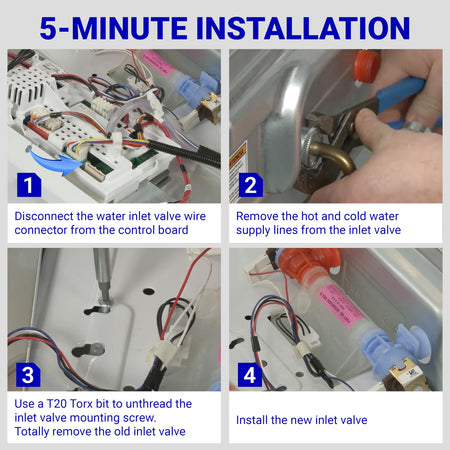

Installation Tips

  • Disconnect the power supply and shut off the water supply valves before starting repairs.
  • Use a towel or drip pan to catch residual water remaining in the supply hoses.
  • Label or photograph electrical wire connections before removal to ensure correct orientation during reassembly.
  • Ensure rubber gaskets are properly seated in the hose connections to prevent leaks after installation.
  • Test the unit for leaks by running a short rinse cycle before pushing the machine back into its operating position.

FAQ

This valve is designed for use with Whirlpool, Maytag, Crosley, Inglis, Roper, Amana, and Kenmore washing machines. It serves as a direct replacement for various top-load washer models that utilize this specific valve assembly configuration.
This part replaces OEM numbers WPW10683603, W10683603, W10423125, W10501149, W10683680, 3451320, PS11757114, and AP6023768.
You likely need a new valve if your washer is failing to fill with water, filling very slowly, or if the washer continues to fill even when the machine is turned off. Additionally, if you notice water leaking from the back of the machine near the hose connections, the valve housing may be cracked or the internal seals may have failed.
Installation is considered an easy task that typically takes 20 to 30 minutes. You will primarily need a screwdriver to remove the rear access panel of your washer. Always ensure the machine is unplugged from the electrical outlet and the water supply valves are turned off before beginning the repair.
Before installing the new valve, ensure the area is clean and free of debris. When reattaching the water supply hoses, be careful not to overtighten them, as this can crack the plastic threads on the new valve. Once installed, turn the water supply back on slowly and check for any leaks at the connection points before running a full cycle.
It is a good practice to inspect your existing fill hoses for any signs of dry rot, cracking, or mineral buildup. If the hoses are old or stiff, replacing them at the same time as the valve is recommended to prevent future leaks.
