WB16K10026 WB29K17 Double Burner Assembly - For GE Kenmore Hotpoint Ranges

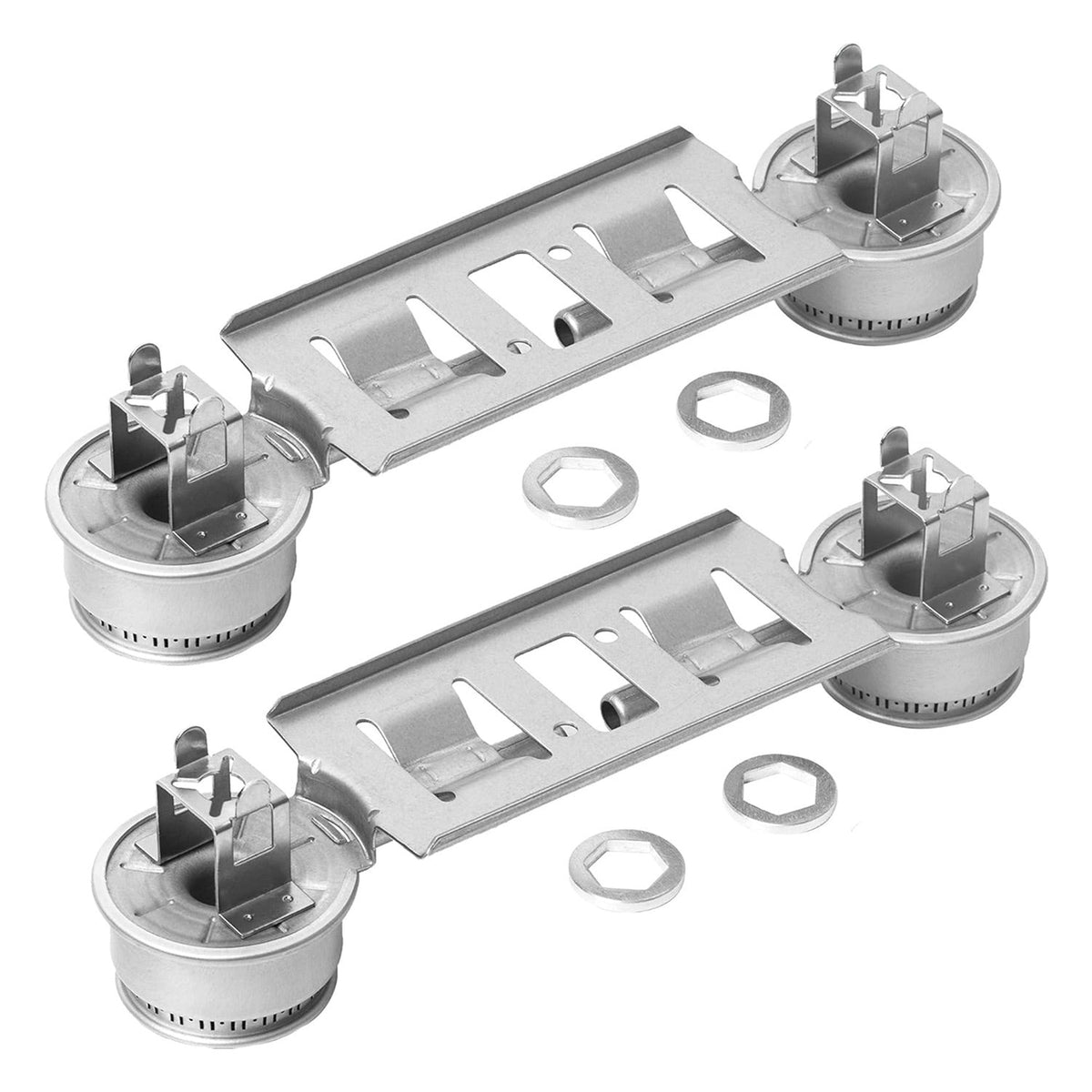

Set of two WB16K10026 double burner assemblies for GE, Kenmore, and Hotpoint ranges with included mounting washers.

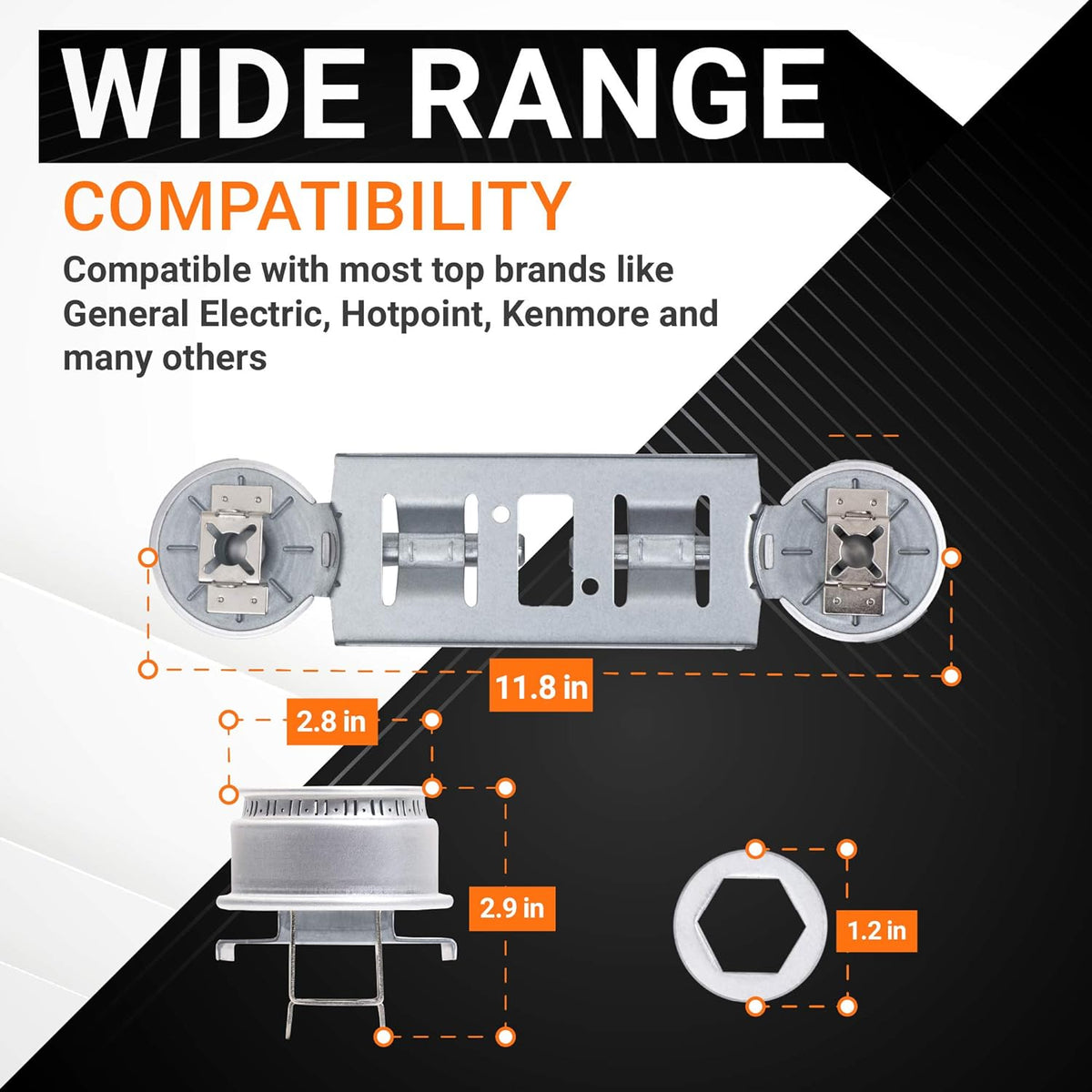

Dimensional diagram of WB16K10026 double burner assembly showing compatibility and measurements for GE range parts.
Stainless steel gas range showing symptoms fixed by WB16K10026 burner assembly replacement.

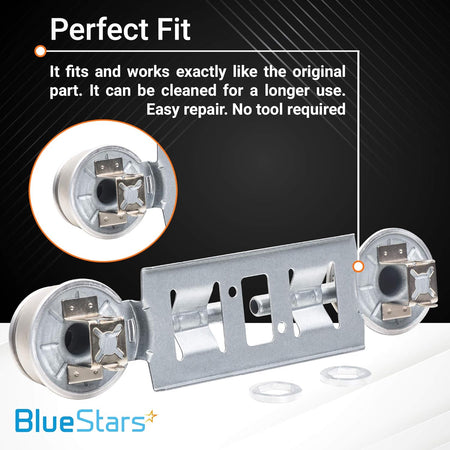

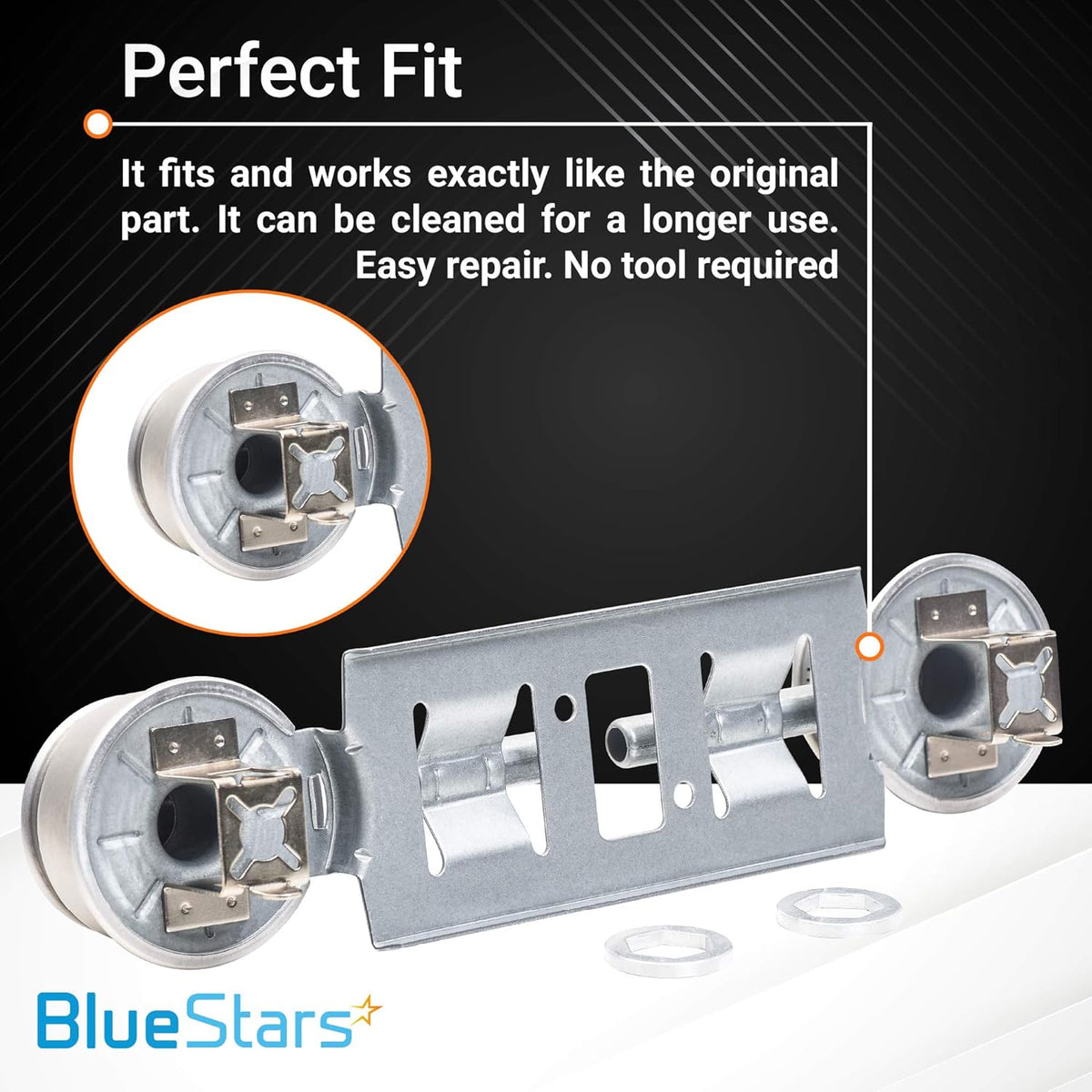

WB16K10026 double burner assembly replacement for GE ranges with close-up view of mounting bracket and burner heads.

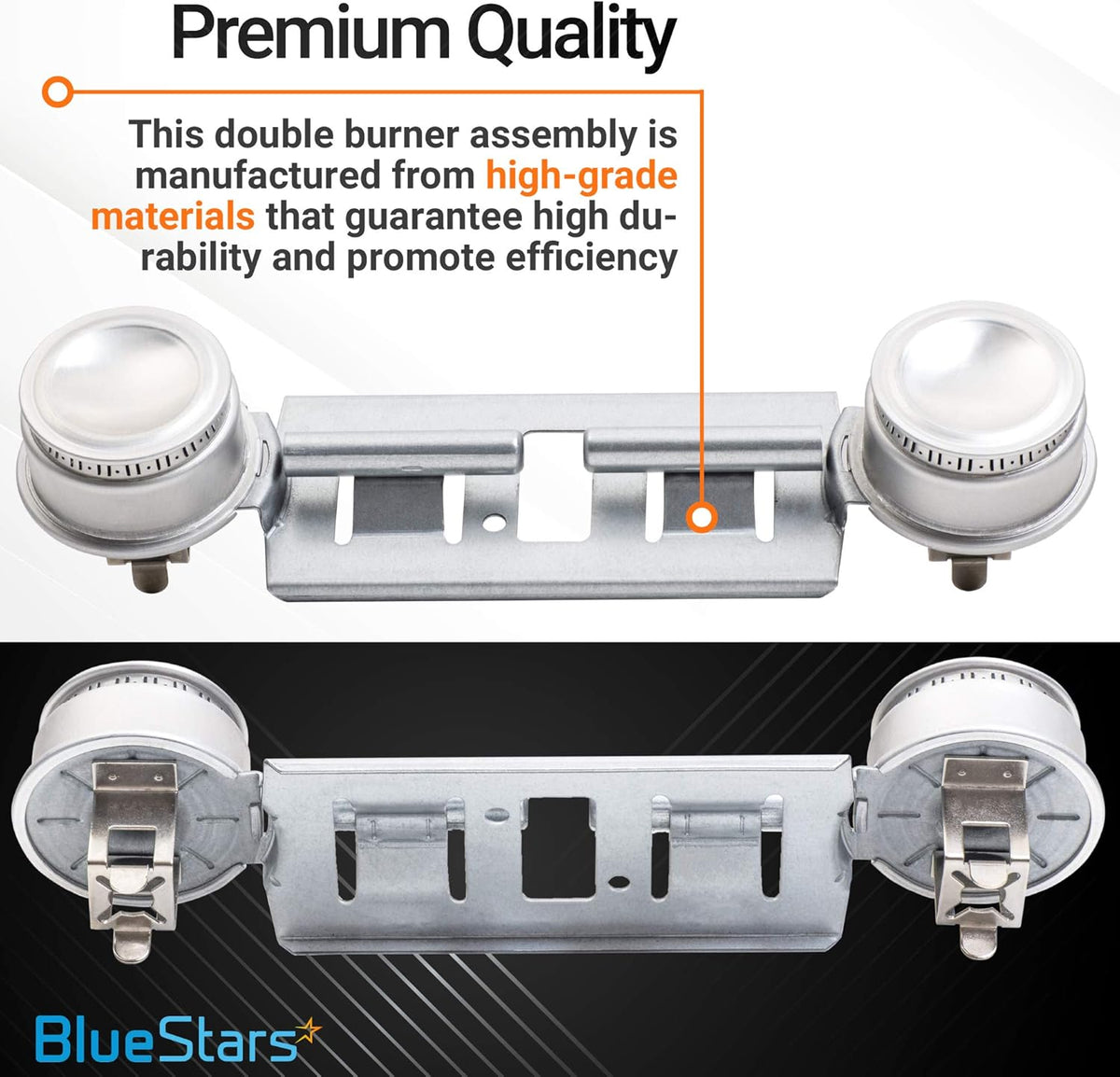

WB16K10026 double burner assembly for GE ranges, showing top and bottom views with premium quality material callout.
Set of two WB16K10026 double burner assemblies for GE, Kenmore, and Hotpoint ranges with included mounting washers.
Dimensional diagram of WB16K10026 double burner assembly showing compatibility and measurements for GE range parts.
Stainless steel gas range showing symptoms fixed by WB16K10026 burner assembly replacement.
WB16K10026 double burner assembly replacement for GE ranges with close-up view of mounting bracket and burner heads.
WB16K10026 double burner assembly for GE ranges, showing top and bottom views with premium quality material callout.
Lifetime Warranty

WB16K10026 WB29K17 Double Burner Assembly - For GE Kenmore Hotpoint Ranges

Save 13%
0.00
$37.05
$42.61
$37.05
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WB16K10026 / WB29K17 Dual Gas Burner Assembly

Key Features

  • Durable Cast Construction: Manufactured from heavy-duty cast metal designed to withstand the high thermal stress of daily cooking without warping, cracking, or corroding.
  • Synchronized Dual-Head Design: Combines two burner heads into a single, rigid assembly, ensuring consistent gas pressure across both cooking zones for balanced heat distribution.
  • Precision-Drilled Gas Ports: Features factory-aligned flame ports that produce a steady, concentrated blue flame, maximizing fuel efficiency and reducing soot buildup on your cookware.
  • Integrated Venturi Tubes: The precisely angled mixing tubes ensure the optimal air-to-gas ratio for safe combustion and reliable ignition across both burner heads.
  • Easy-Clean Surface: The smooth finish of the burner heads allows for easier removal of boiled-over food and grease, helping to prevent port blockages.

Replaces / Cross-Reference Part Numbers

  • 868697
  • AH232404
  • AP2633210
  • EA232404
  • EAP232404
  • PD00001246
  • PS232404
  • WB16K10003
  • WB29K0001
  • WB29K0017
  • WB29K1
  • WB29K17

Compatibility & Fitment

This assembly is a standard component for many gas ranges manufactured by General Electric. Key compatible brands include:

  • GE (General Electric): Fits various XL44 and Spectra series gas ranges.
  • Hotpoint: Compatible with many RGB series freestanding gas ranges.
  • Kenmore: Fits Sears/Kenmore models with the 363. prefix (manufactured by GE).
  • Note: This assembly is typically used for the left or right burner pairs. Please compare the dimensions and tube lengths of your existing burner to the new unit, as some models use different sized assemblies for different sides of the cooktop.

When to Replace

  • Uneven Flame Pattern: If sections of the burner head aren't lighting or the flame is "jumping," the internal gas channels may be clogged with grease or rust.
  • Heavy Rust or Flaking: If the cast metal is deteriorating, flakes can fall into and clog the gas orifice, leading to poor ignition or a gas smell.
  • Persistent Yellow Flame: Indicates poor air-gas mixing, often caused by spider webs, dust, or corrosion inside the venturi tubes that cannot be cleared by cleaning.
  • Cracked Burner Head: Any visible fracture in the metal body is a safety hazard and can lead to unpredictable gas flow.

Installation Tips

  • Safety First: CRITICAL: Turn off the gas supply to the range and unplug the power cord before beginning. Ensure the cooktop is completely cool.
  • Clean the Orifices: PRO TIP: Before installing the new WB16K10026, use a thin wire or a specialized orifice cleaner to ensure the brass gas nozzles on the range are free of debris.
  • Venturi Alignment: Carefully slide the burner tubes over the gas orifices. If they are not perfectly centered, the burner may produce a whistling sound or fail to light properly.
  • Check the Spark Igniter: While the burners are removed, wipe down the ceramic spark igniter. If it is caked in grease, the new burner may struggle to spark.
  • Initial Burn: When you first light the new burners, you may see a small amount of orange flame or light smoke. This is normal as the factory protective coating burns off and should disappear within a few minutes.
Product image
Product image
Brand Model Number
Replaces 868697, AH232404, AP2633210, EA232404, EAP232404, PD00001246, PS232404, WB16K10003, WB29K0001, WB29K0017, WB29K1, WB29K17
GE AGBS300EP1BB, AGBS300EP1WW, AGBS300EP2BB, AGBS300EP2WW, AGBS300EP3BB, AGBS300EP3WW, AGBS300EP4BB, AGBS300EP4WW, AGBS300PJ1WW, AGBS300PJ2WW, AGBS300PJ3WW, AGBS300PJ4WW, AGBS300PJ5WW, AGBS300PJ6WW, AGBS300PK1BB, AGBS300PK2BB, AGBS300PK3BB, AGBS300PK4BB, AGBS300PK5BB, AGBS300PK6BB, JGB26WEA1WW
GE JGBC12GEN1, JGBC12GEN2, JGBC15GEN1, JGBC15GEN2, JGBC15GER2, JGBC15GER3, JGBC15GER4, JGBC15GER5, JGBC15GER6, JGBC17EV1AD, JGBC17EV1WH, JGBC17EV2AD, JGBC17EV2WH, JGBC17EV3AD, JGBC17EV3WH, JGBC17EV4AD, JGBC17EV4WH, JGBC17GER1, JGBC17GER2, JGBC17GER3, JGBC17GER4, JGBC17PEA1AD, JGBC17PEA1WH, JGBC17PEA2AD, JGBC17PEA2WH, JGBC17PEA3AD, JGBC17PEA3WH, JGBC17PEW1AD, JGBC17PEW1WH, JGBC17PEW2AD, JGBC17PEW2WH, JGBC18EV1WW, JGBC18EV2WW, JGBC18EV3WW, JGBC18EV4WW
GE JGBC20BEA1AD, JGBC20BEA1CT, JGBC20BEA1WH, JGBC20BEA2AD, JGBC20BEA2CT, JGBC20BEA2WH, JGBC20BEA3AD, JGBC20BEA3CT, JGBC20BEA3WH, JGBC20BEA4WH, JGBC20BEA5WH, JGBC20BEH1CT, JGBC20BEH1WH, JGBC20BEH2CT, JGBC20BEH2WH, JGBC20BEW1AD, JGBC20BEW1WH, JGBC20CEH1CC, JGBC20CEH2CC, JGBC20GEV1AD, JGBC20GEV1WH, JGBC20GEV2AD, JGBC20GEV2WH, JGBC20GEV3AD, JGBC20GEV3WH, JGBC20GEV4AD, JGBC20GEV4WH, JGBC20WEA1WW, JGBC20WEA2WW, JGBC20WEA3WW, JGBC20WEA4WW, JGBC20WEA5WW, JGBC20WEH1WW, JGBC20WEH2WW, JGBC20WEW1WW
GE JGBP24BEA1AD, JGBP24BEA1CT, JGBP24BEA1WH, JGBP24BEA2AD, JGBP24BEA2WH, JGBP24BEA3AD, JGBP24BEA3CT, JGBP24BEA3WH, JGBP24BEA4AD, JGBP24BEA4WH, JGBP24BEA5AD, JGBP24BEA5WH, JGBP24BEA7WH, JGBP24BEH1CT, JGBP24BEH1WH, JGBP24BEH2CT, JGBP24BEH2WH, JGBP24BEH3CT, JGBP24BEH3WH, JGBP24BEH4CT, JGBP24BEH4WH, JGBP24BEH5CT, JGBP24BEH5WH, JGBP24BEH6CT, JGBP24BEH6WH, JGBP24BEW1AD, JGBP24BEW1WH, JGBP24GEN1, JGBP24GEN3, JGBP24GEN4, JGBP24GEN5, JGBP24GEN6, JGBP24GEN7, JGBP24GEV1AD, JGBP24GEV1WH, JGBP24GEV2AD, JGBP24GEV2WH, JGBP24GEV3AD, JGBP24GEV3WH, JGBP24GEV4AD
GE JGBP25GEN7, JGBP26CEA1CC, JGBP26DEM2CC, JGBP26GEN4, JGBP26GEN6, JGBP26GEV2WH, JGBP26WEA1WW, JGBP26WEA2WW, JGBP26WEA3WW, JGBP26WEA4WW, JGBP26WEH1WW, JGBP26WEH2WW, JGBP26WEW1WW
GE JGBS03PPA3AD, JGBS04BEA2AD, JGBS04BEA5AD, JGBS04BEA6WH, JGBS04BEH2WH, JGBS04BPA3AD, JGBS04PPH1WW, JGBS04PPM1WW, JGBS04PPA6WH, JGBS07DET3BB, JGBS07DET3WW, JGBS07PEA1WW, JGBS07PEA5WW, JGBS07PEH1WW, JGBS10DEF1BB, JGBS10DEF1CC, JGBS10DEF1WW, JGBS10GEF1SA, JGBS14PCF1WW
GE JGBS17PEA1CT, JGBS17PEA1WH, JGBS17PEA2AD, JGBS17PEA2CT, JGBS17PEA2WH, JGBS17PEA3AD, JGBS17PEA3CT, JGBS17PEA3WH, JGBS17PEA4WH, JGBS17PEA5WH, JGBS17PEH1CT, JGBS17PEH1WH, JGBS17PEH2CT, JGBS17PEH2WH, JGBS17PEK1WW, JGBS17PEK2WW, JGBS17PEW1AD, JGBS17PEW1WH, JGBS17PEW2AD, JGBS17PEW2WH, JGBS17PEW2WH, JGBS18EV1WW, JGBS18EV2WW, JGBS18EV3WW, JGBS18EV4WW
GE JGBS19BEH1CT, JGBS19BEH1WH, JGBS19BEH2CT, JGBS19BEH2WH, JGBS19BEM1CT, JGBS19BEM1WH, JGBS19BEM2CT, JGBS19BEM2WH, JGBS19BEM4CT, JGBS19BEM4WH, JGBS19BEM5CT, JGBS19BEM5WH, JGBS19BEM6CT, JGBS19BEM6WH, JGBS20BEA1AD, JGBS20BEA1CT, JGBS20BEA1WH, JGBS20BEA2AD, JGBS20BEA2WH, JGBS20BEA3AD, JGBS20BEA3WH, JGBS20BEA4AD, JGBS20BEA4WH, JGBS20BEA5AD, JGBS20BEA5WH, JGBS20BEH1CT, JGBS20BEH1WH, JGBS20BEH2CT, JGBS20BEH2WH, JGBS20BEW1AD, JGBS20BEW1WH, JGBS20BEW2WH, JGBS20DEM1BB, JGBS20DEM1CC, JGBS20DEM1WW, JGBS20DEM2BB, JGBS20DEM2CC, JGBS20DEM2WW, JGBS20GEV1AD, JGBS20GEV1WH, JGBS20GEV2AD, JGBS20GEV2WH, JGBS20GEV3AD, JGBS20GEV3WH, JGBS20GEV4AD, JGBS20GEV4WH, JGBS20WEA1WW, JGBS20WEA2WW, JGBS20WEA3WW, JGBS20WEA4WW, JGBS20WEA5WW, JGBS20WEH1WW, JGBS20WEH2WW
GE RGB508PEA3AD, RGB508PEH5CT, RGB508PPH2WH, RGB508PPA1WH, RGB518PCH1WH, RGB523PPH3WH, RGB524PEA6WH, RGB524PEH1WH, RGB524PPH5CT, RGB525DEH3BB, RGB526PEA1WH, RGB528BEA2AD, RGB528BEA3CT, RGB528BEA4CT, RGB528PEN2BB, RGB628BEA2AD, RGB744WEA3WW, RGB746GEN1
Kenmore 362.7121890, 362.7131892, 362.7162890

FAQ

This assembly is a direct replacement for OEM part numbers WB16K10026 and WB29K17. It also cross-references with 65932, 868697, AP2633210, WB16K10003, WB29K0001, WB29K0017, WB29K1, and PS232404.
This double burner assembly is designed for use in gas ranges manufactured by GE, Kenmore, and Hotpoint. It is compatible with a wide range of models where the front and rear surface burners are mounted on a shared bracket.
You likely need a replacement if you notice uneven flame patterns, a burner that fails to ignite, or if the metal bracket holding the burners has become warped, rusted, or physically damaged. If gas is not being directed properly to both the front and rear burners, the assembly is likely compromised.
Installation is straightforward and typically takes about 15 to 30 minutes. You will need basic hand tools to remove the cooktop or burner grates to access the assembly. Always ensure the gas supply is shut off and the surface is completely cool to the touch before beginning. We recommend wearing work gloves to protect your hands from sharp edges inside the range.
Before installing, inspect the gas lines and connections for any debris or blockages. Ensure the burner ports are clear of spills or food buildup, as these can cause poor flame quality even with a new assembly. If you notice any signs of gas leaks or damaged supply lines, those should be addressed immediately before reassembling the unit.
