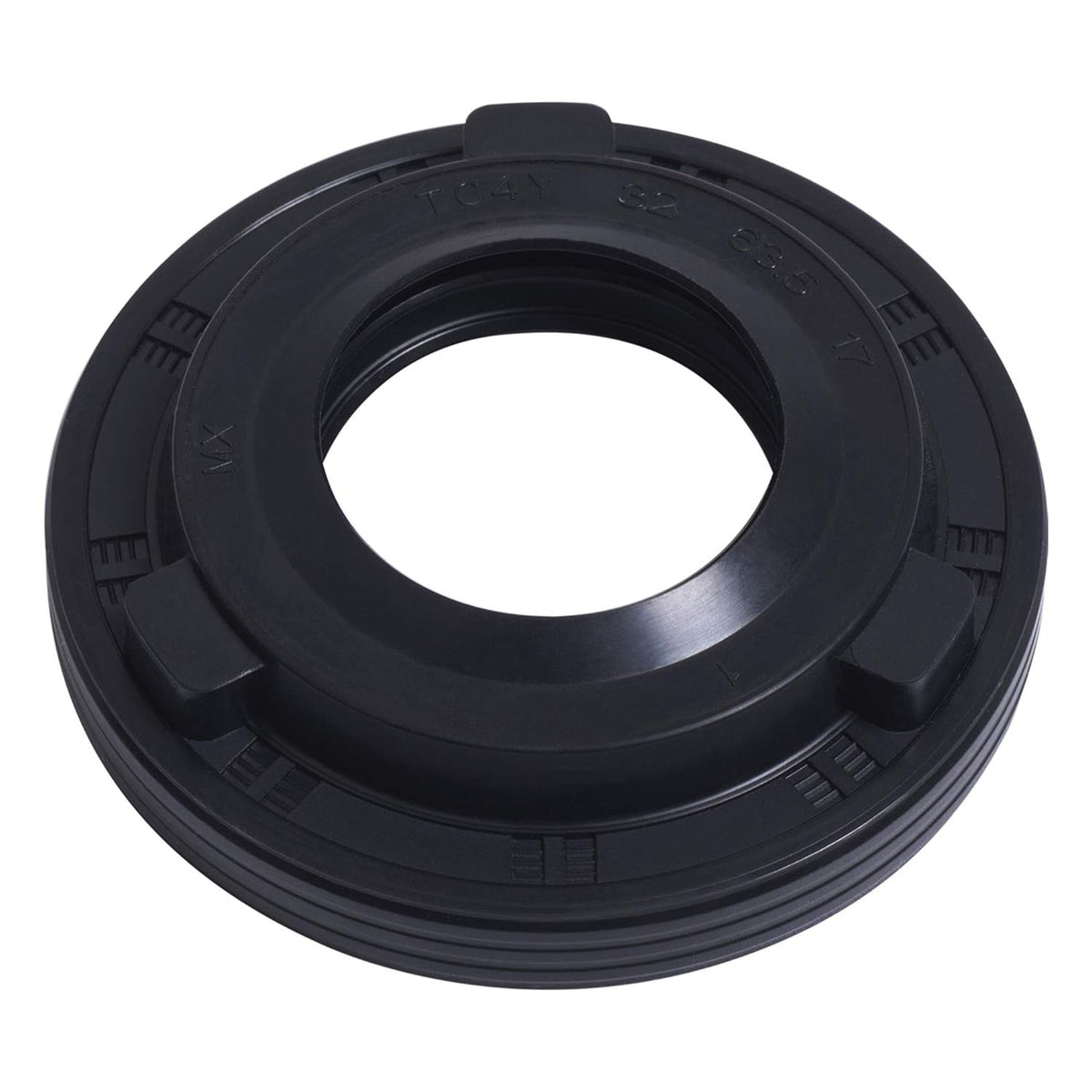

Black rubber washer tub seal replacement for GE and Hotpoint washing machines.
Comparison chart of WH02X10383 washer tub seal showing BlueStars OEM quality versus generic knock-off parts.

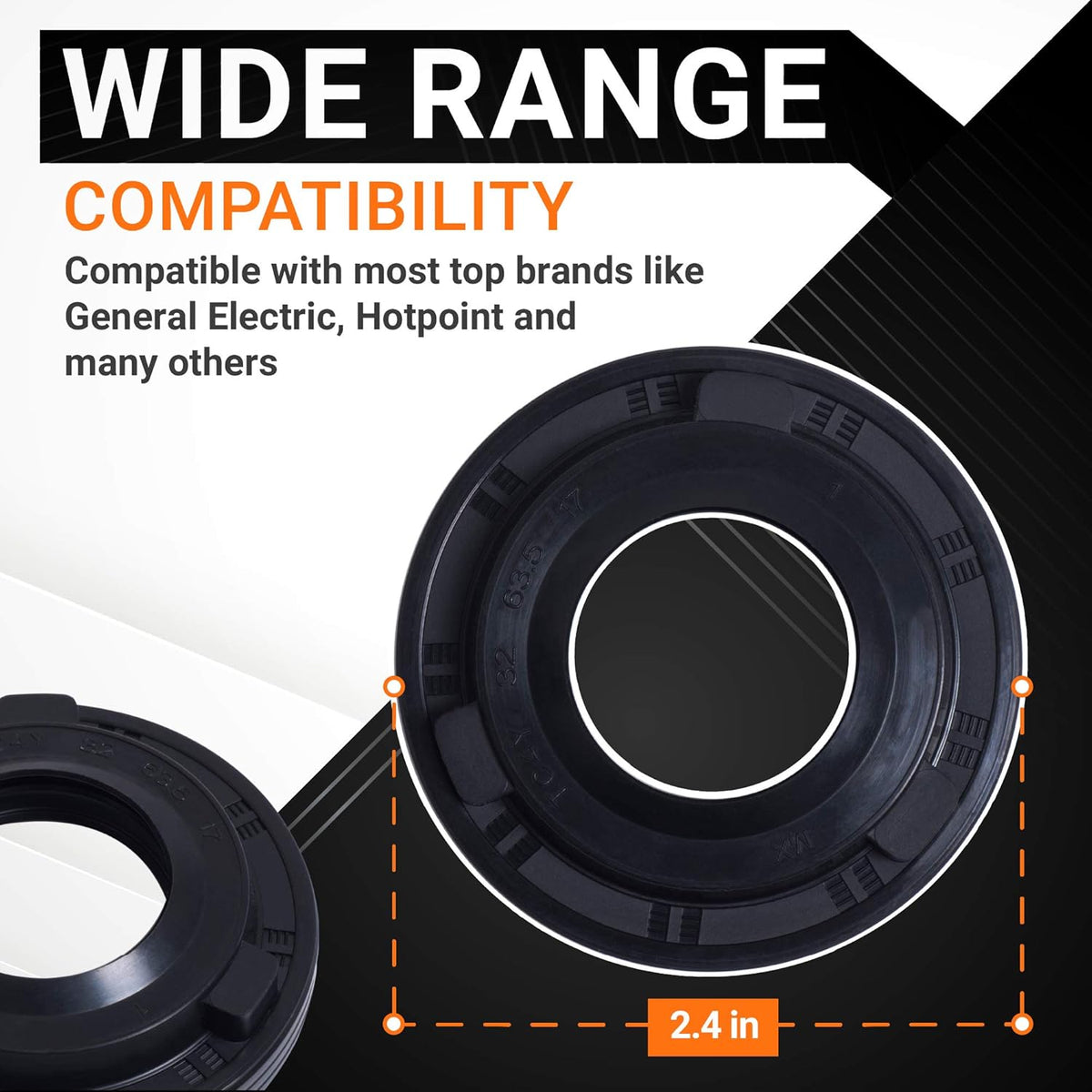

WH02X10383 washer tub seal showing 2.4-inch diameter measurement for GE and Hotpoint washing machines.
Graphic showing GE and Hotpoint washer symptoms fixed by WH02X10383 tub seal replacement.

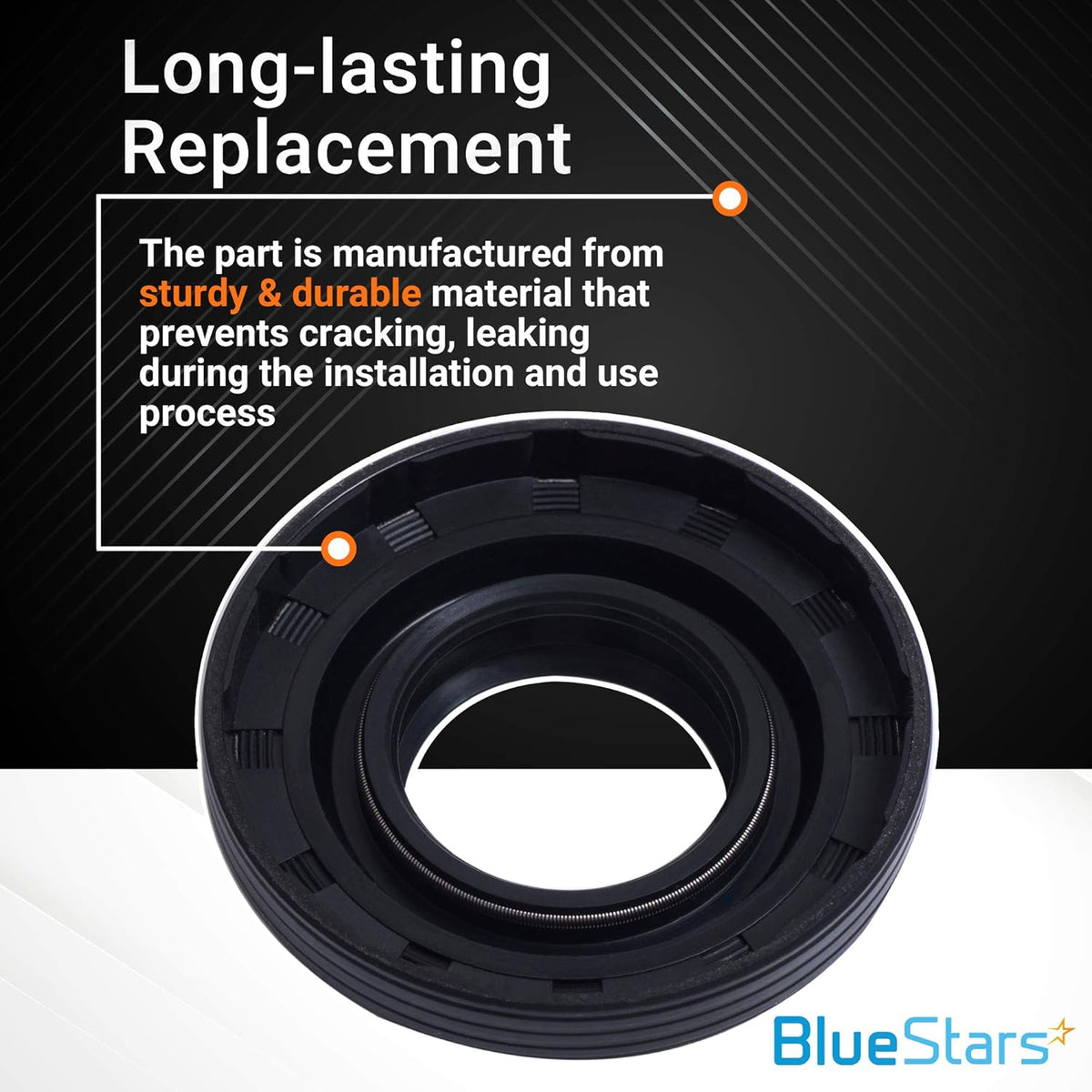

Close-up of WH02X10383 washer tub seal for GE and Hotpoint washing machines.

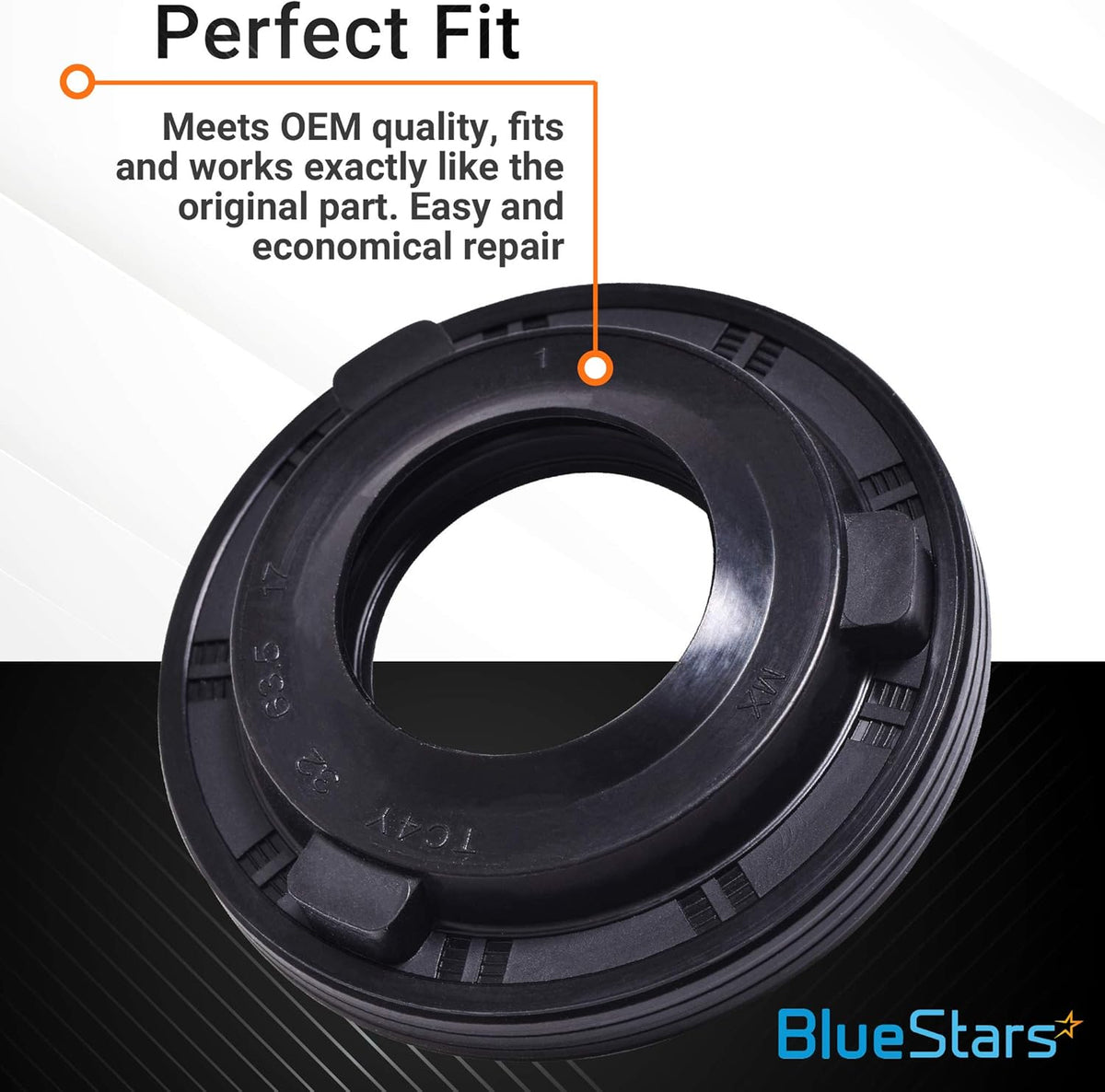

WH02X10383 washer tub seal for GE and Hotpoint washing machines with OEM quality fitment graphic.
BlueStars technician repairing a GE or Hotpoint washing machine for DIY tub seal replacement.
Black rubber washer tub seal replacement for GE and Hotpoint washing machines.
Comparison chart of WH02X10383 washer tub seal showing BlueStars OEM quality versus generic knock-off parts.
WH02X10383 washer tub seal showing 2.4-inch diameter measurement for GE and Hotpoint washing machines.
Graphic showing GE and Hotpoint washer symptoms fixed by WH02X10383 tub seal replacement.
Close-up of WH02X10383 washer tub seal for GE and Hotpoint washing machines.
WH02X10383 washer tub seal for GE and Hotpoint washing machines with OEM quality fitment graphic.
BlueStars technician repairing a GE or Hotpoint washing machine for DIY tub seal replacement.
Lifetime Warranty

WH02X10383 Washer Tub Seal - For GE & Hotpoint Washers

Save 13%
0.00
$13.04
$15.00
$13.04
In stock
Fast delivery

Secure and trusted checkout with

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Diners Club
  • Discover
Contact for wholesale
🛠️
CONFIRM THE FIT FOR YOUR MODEL
Enter your model number

WH02X10383 Washer Tub Seal

Key Features

  • Creates a watertight seal around the transmission shaft to prevent leaks from the bottom of the tub.
  • Addresses common washer symptoms including water leakage, unusual noises, and failure to spin.
  • Dimensions: 0.625 in. (H) x 2.5 in. (W) x 2.5 in. (D)

Replaces / Cross-Reference Part Numbers

  • AP5645738
  • PS4704237
  • WH02X10032
  • WH2X10032
  • WH02X1196
  • WH2X1196
  • 3029799

Compatibility & Fitment

  • Designed for use with various General Electric (GE) top-load washing machine models.

When to Replace

  • Water is leaking from the center area underneath the washing machine.
  • Loud grinding or rumbling noises are present during the spin cycle.
  • The washer agitates and pumps but will not spin.
  • The existing seal is visibly cracked, worn, or damaged.

Installation Tips

  • Disconnect the washer from all power and water supplies before beginning the installation.
  • Thoroughly clean the tub and transmission shaft surfaces where the new seal will be installed.
  • Ensure the seal is seated evenly and correctly to prevent future leaks.
  • It is often recommended to inspect and replace the tub bearing at the same time as the seal.
Brand Model Number
Replaces 3029799, AP5645738, PS4704237, WH02X10032, WH02X1196, WH2X10032, WH2X1196
GE GBAN2800F0WW, GCAP1800D0WW, GCAP1800D1WW, GCSR2090H0WW, GCSR2090H2WW, GCSR2090H3WW, GCSR2090H5WW, GCSR2090H6WW, GCSR2090H7WW, GCSR2090H8WW, GCSR2090H9WW, GCWN2800D0WW, GCWN2800D1WW, GCWN2800D2WW, GCWN4950D0WS, GCWN4950D1WS, GCWN4950D2WS, GCWN5550D0WW, GCWP1800D0WW, GCWP1800D1WW, GCWP1805D0CC, GCWP1805D1CC
GE GHWN4250D0WW, GHWN4250D1WW, GHWN4250D2WW, GHWN5250D0WS, GHWN5250D1WS, GIWN3000M0WW, GIWP1000M0WW, GIWP2000M0WW, GLWN2800D0WS, GLWN2800D1WS, GLWN2800D2WS, GLWN5250D0WW, GLWN5250D1WW, GLWN5550D0WW, GLWN5550D1WW
GE GMAN2800D0WS, GMAN2800D1WS, GMAN2800D2WS, GMAN4250F0WS, GMAN4250F1WS, GMAN4250F2WS, GMAN5650D0WW, GMAN5650D1WW, GRWN5550D0WS
GE GTAN2800D0WW, GTAN2800D1WW, GTAN2800D2WW, GTAN4250D0WW, GTAN4250D1WW, GTAN4250D2WW, GTAN5250D0WW, GTAN5250D1WW, GTAN5250D2WW, GTAN5550D0WW, GTAP1800D0WW, GTAP2250D0WW, GTW180SCJ0WW, GTW180SSJ0WW
GE GTWN2800D0WW, GTWN2800D1WW, GTWN2800D2WW, GTWN4250D0WS, GTWN4250D1WS, GTWN4250D2WS, GTWN4950D0WS, GTWN4950D1WS, GTWN4950F0WW, GTWN5250D0WW, GTWN5250D1WW, GTWN5250F0WW, GTWN5550D0WW, GTWN5550D1WW, GTWN5850D0WW, GTWN5850D1WW, GTWP1800D0WW, GTWP1800D1WW, GTWP2000F0WW, GTWP2000F1WW, GTWP2000F2WW
GE WJSR2050D0WW, WJSR2050D1WW, WJSR2050D2WW, WJSR2050D3WW, WJSR2050D4WW, WJSR2050D5WW, WJSR2050D6WW, WJSR2050D8WW, WJSR2070B5WW, WJSR2070B6WW, WJSR2070B7WW, WJSR2070B9WW, WJSR2070BAWW, WJSR4160D0WW, WJSR4160D1WW, WJSR4160D2WW, WJSR4160D4WW, WJSR4160D5WW, WJSR4160D6WW
GE WNSB8060B0CC, WNSB8060B0WW, WNSB8060B1CC, WNSB8060B1WW, WNSB8060B9CC, WNSB8060B9WW, WNSB9080B0CC, WNSB9080B0WW, WNSB9100B0CC, WNSB9100B0WW, WNSB9270B0WW, WNSE4200A0WW, WNSE5700A0WW, WNSE5700A1WW, WNSE5700A2WW, WNSE5700A3WW, WNSE5700A4WW, WNSE5700A6WW, WNSE5700B0WW, WNSE5700B1WW, WNSE5700B5WW, WNSE5700B6WW, WNSE5700B9WW
GE WPDH8900J0MG, WPDH8900J0WW, WPDH8900J1MG, WPDH8900J1WW, WPDH8900J2MG, WPDH8900J2WW, WPDH8900J3WW, WPGT9350C0PL, WPGT9350C0WW, WPGT9360EEL, WPGT9360EEW, WPGT9360EFL, WPGT9360EFW, WPGT9380C0WW, WPRB9200J0WW, WPRB9200J1WW, WPRB9220A2WW, WPRB9220B0WW, WPRB9220B1WW, WPRB9220B2WW, WPRB9220B3WW, WPRD9200J0WW, WPRD9200J1WW, WPRE6100G0WT, WPRE6100G1WT, WPRE6100G2WT, WPRE6100G3WT, WPRE6150K0WT, WPRE6150K1WT, WPRE6150K2WT, WPRE6150KWT, WPRE8100G0WT, WPSE5270A0AA, WPSE5270A0WW, WPSE5270A1AA, WPSE5270A1WW, WPSE5270A3WW, WPSE6100G0WT, WPSE6100G1WT, WPSE6100G2WT
GE WCSR2090G0CC, WCSR2090G0WW, WCSR2090G1CC, WCSR2090G1WW, WCSR2090G2CC, WCSR2090G2WW, WCSR2090G3CC, WCSR2090G3WW, WCSR4170A0WW, WCSR4170A1WW, WCSR4170A2WW, WCSR4170A3WW, WCSR4170A4WW
GE WBSR3140D0WW, WBSR3140D1WW, WBSR3140D2WW, WBSR3140D3WW, WBSR3140D4WW, WBSR3140D5WW, WBSR3140D6WW, WBSR4150D0WW, WBSR4150D1WW, WBSR4150D2WW, WBSR4160D0WW, WBSR4160D1WW, WBSR4160D2WW
Hotpoint HSWP1000M0WW, HSWP1000M1WW, HSWP1000M2WW, HSWP1000M3WW, HTWP1200D0WW, HTWP1400F0WW, HTWP1400F1WW

FAQ

This seal is the current manufacturer-recommended replacement for several older part numbers, including WH02X10032, WH02X1196, WH2X10032, and AP5645738. Even if the design appears slightly different from your original part, it is engineered to function as the direct replacement.
The primary indicator is water leaking from the center of the washer, specifically around the transmission shaft, during the fill or agitation cycles. If you notice water pooling beneath the machine or signs of corrosion around the transmission housing, the seal has likely failed.
The tub seal acts as the primary water barrier between the outer tub and the transmission shaft. It prevents water from leaking out of the wash tub and into the mechanical components of the washer, which protects the transmission and bearings from water damage.
Before installing the new seal, ensure the mating surface on the outer tub is perfectly clean and free of any old adhesive, mineral deposits, or debris. Some technicians prefer to apply a thin, even coat of RTV sealant to the outer edge and bottom of the seal to ensure a watertight fit, though this is optional depending on the condition of your tub housing.
This tub seal is designed for use in GE and Hotpoint washing machines. It is a critical component for the main tub assembly on many top-load models utilizing this specific transmission shaft configuration.
