If a faulty flame sensor causes your furnace to shut down shortly after ignition, cycle repeatedly, or fail to maintain consistent heating, recognizing bad flame sensor symptoms early can help you narrow down the cause and prevent unnecessary furnace interruptions. At BlueStars Parts, you can find replacement parts and practical resources to help keep your heating system operating properly.
Quick Diagnosis: Signs You Have a Bad Flame Sensor
Use the table below to distinguish operational problems from physical signs and determine whether cleaning or replacement may be appropriate. Symptoms alone cannot confirm that the flame sensor has failed, so further testing may be necessary.
| Type | Symptom | What It Means | Clean or Replace? |
|---|---|---|---|
| Operational | Short cycling | The flame signal may be interrupted. | Inspect and clean if appropriate |
| Operational | Cold air from vents | The burners may shut off before the heating cycle finishes. | Inspect the sensor and other possible causes |
| Operational | Repeated clicking or ignition attempts | The furnace may not be confirming a stable flame. | Inspect the ignition system |
| Operational | Flame-sensing error code or lockout | The sensor signal or another part of the ignition system may be faulty. | Diagnose before replacing |
| Physical | Soot or light corrosion on the sensor rod | Surface buildup may interfere with flame detection. | Clean if permitted by the manufacturer |
| Physical | Heavy corrosion or cracked porcelain | The sensor may have permanent physical damage. | Replace if damage is confirmed |
Operational symptoms describe how the furnace behaves, while physical signs can be seen directly on the flame sensor. If symptoms continue after cleaning, further testing may be needed before replacing the part.
1. What Does a Furnace Flame Sensor Do?
A furnace flame sensor is a safety component located near the burner assembly. Its main job is to confirm that a burner flame is present after the gas valve opens. Most modern flame sensors use flame rectification, producing a very small electrical signal that tells the control board combustion has been established.
When the sensor detects a stable flame, the control board allows the gas valve to remain open and the heating cycle continues. If the flame signal is missing or too weak, the board shuts off the gas supply to prevent unburned gas from accumulating. A dirty, damaged, or poorly positioned sensor can therefore cause the furnace to shut down even when the burners initially ignite.

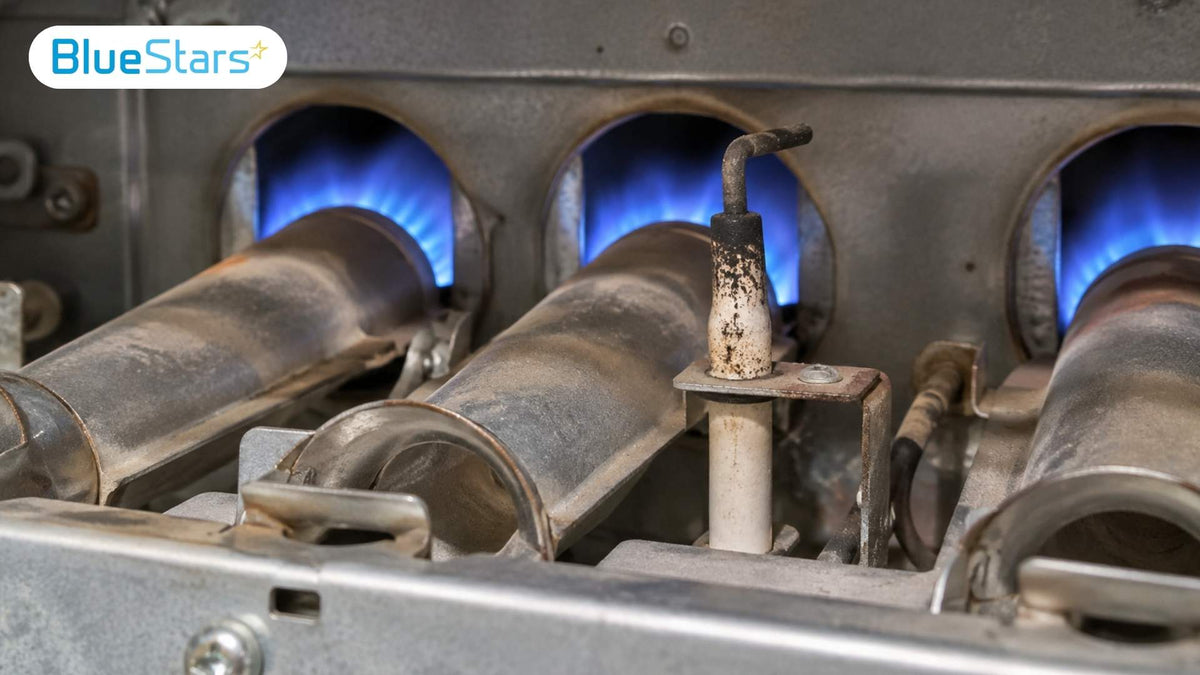

A furnace flame sensor confirms that a burner flame is present. (Source: BlueStars Parts)
2. Common Symptoms of a Bad Flame Sensor
Common bad flame sensor symptoms can be divided into two groups: operational symptoms and physical symptoms. These symptoms can also have other causes, so proper diagnosis is important before replacing the sensor.
2.1. Operational Symptoms
- Burners Ignite Then Shut Off After a Few Seconds: This is one of the most recognizable signs of a flame-sensing problem. The burners ignite normally, but the control board shuts off the gas when it does not receive a reliable flame signal.
- Repeated Ignition Attempts or Furnace Lockout: The furnace may repeatedly try to ignite after losing the flame signal. After several unsuccessful attempts, some systems enter a safety lockout until the problem is corrected or the system is reset.
- Furnace Blows Cold Air: A faulty or dirty flame sensor can cause the burners to shut down while the blower continues operating. As a result, cool or cold air may come from the vents instead of heated air.
- Clicking or Re-Ignition Attempts: Repeated clicking may occur as the furnace restarts its ignition sequence after failing to confirm a stable flame. However, clicking can also indicate an igniter or other ignition-system problem, so this symptom should be considered alongside other signs.
- Flame-Sensing or Ignition Error Code: Many modern furnaces use diagnostic LEDs or control-board codes to indicate flame-sensing or ignition faults. Check the furnace manual because the exact code and meaning vary by model.
2.2. Physical Symptoms
- Soot, Carbon, or Oxidation: A layer of carbon, soot, or oxidation on the sensor rod can interfere with the small electrical flame signal. Light surface buildup may indicate that the sensor needs cleaning rather than immediate replacement.
- Severe Corrosion or Pitting: A heavily corroded, worn, or pitted sensing rod may no longer provide a reliable flame signal. Significant deterioration can indicate that replacement is more appropriate than cleaning.
- Cracked Ceramic Insulator: Inspect the ceramic or porcelain section around the base of the sensor for visible cracks or other damage. A cracked insulator can interfere with the electrical signal and generally indicates that the flame sensor should be replaced rather than cleaned.
Common bad flame sensor symptoms can be divided into operational and physical signs. (Source: BlueStars Parts)
3. Should You Clean or Replace the Flame Sensor?
Whether you should clean or replace a flame sensor depends on its physical condition and how the furnace responds after cleaning. Light surface buildup may be removable, while permanent damage or recurring flame-sensing problems usually require further diagnosis and may point to replacement.
| Situation | When to Clean | When to Replace |
|---|---|---|
| Light soot, carbon, or oxidation | Clean when buildup is limited to the sensor surface and the manufacturer permits cleaning. | Consider replacement if problems continue after cleaning and testing confirms sensor failure. |
| Furnace shuts off shortly after ignition | Inspect and clean if the sensor appears dirty but undamaged. | Replace if testing confirms a faulty sensor and short cycling continues after cleaning. |
| Recurring flame-sensing error or lockout | Clean if buildup may be weakening the flame signal. | Replace if sensor failure is confirmed after cleaning and electrical checks. |
| Severe corrosion or pitting | Cleaning may not restore a badly deteriorated surface. | Replace if corrosion has visibly damaged the sensor rod. |
| Cracked ceramic insulator or damaged sensor | Do not rely on cleaning to correct physical damage. | Replace the damaged flame sensor with a compatible part. |
| Intermittent problems on an older sensor | Clean if the sensor is intact and only lightly contaminated. | Replace if testing confirms sensor wear or failure. |
4. How to Replace a Furnace Flame Sensor
Because the sensor is part of a gas furnace safety system, follow the furnace manufacturer's service instructions and stop if you are not comfortable working around gas or electrical components. The following steps provide a general overview; the exact procedure varies by furnace model.
Step 1: Turn Off Power and Gas
Set the thermostat so the furnace is not calling for heat. Turn off electrical power to the furnace at the service switch or circuit breaker, then close the furnace gas shutoff valve before opening the cabinet. Follow the manufacturer's instructions for safely isolating the equipment before internal service.
Safety note: If you smell gas before or during the repair, do not operate electrical switches or continue working on the furnace. Leave the area and contact your gas utility or emergency services from a safe location.
Step 2: Remove Access Panel and Locate Sensor
Remove the furnace access panel according to the manufacturer's instructions. Locate the burner assembly and look for a thin metal flame-sensing rod mounted so its tip extends into the burner flame path. It typically has a ceramic insulator, a mounting bracket, and one electrical wire.
Safety note: Allow the furnace and burner area to cool before touching internal components.
Remove the furnace access panel according to the manufacturer's instructions. (Source: BlueStars Parts)
Step 3: Disconnect Wire and Remove Sensor
Note the sensor's mounting position before removal. Carefully disconnect the electrical wire from the sensor terminal, remove the mounting screw, and slide the sensor out of the burner assembly. Some flame sensors are secured by a single mounting screw, although the exact design varies by furnace.
Safety note: Do not pull on the wire itself. Grip the connector when disconnecting it to reduce the risk of damaging the wiring.
Step 4: Compare New Sensor With Original Part
Before installation, compare the replacement with the original sensor. Check the part number, mounting bracket, terminal connection, rod length and shape, and overall orientation. Flame sensors are not universal, so the replacement must match the specifications for the specific furnace model.
Do not choose a replacement based only on appearance. Confirm compatibility using the furnace model number, service manual, or original flame sensor part number.
Check the part number, mounting bracket, and terminal connection before installation. (Source: BlueStars Parts)
Step 5: Install the New Sensor
Insert the new flame sensor into the same mounting position as the original, making sure the sensing rod is positioned in the burner flame path. Secure the mounting screw according to the manufacturer's instructions, then reconnect the electrical wire firmly to the sensor terminal.
Safety note: Handle the replacement by its ceramic base or mounting bracket and avoid touching the sensing rod with bare hands. Follow the manufacturer's handling and installation guidance to reduce the risk of contamination or damage.
Step 6: Restore Gas and Power and Test
Reinstall the furnace access panel securely. Restore the gas supply and electrical power according to the manufacturer's instructions, then set the thermostat to call for heat. Observe a complete heating cycle and confirm that the burners ignite, remain lit, and the furnace continues operating normally.
Safety note: Stop the furnace immediately if you smell gas, notice abnormal burner behavior, or the furnace repeatedly shuts down or enters lockout. These symptoms may involve the gas valve, ignition system, control board, wiring, or other components and require further diagnosis by a qualified professional.
The correct flame sensor should match both the furnace model and the original part number. Probe shape, mounting position, electrical connection, and compatibility can vary between furnace systems, so verify the fit before ordering.
Recommended Replacement Parts
| Compatible Furnace Brands | Furnace Flame Sensor | Replacement/Cross-Reference Part Numbers |
|---|---|---|
| Lennox, Armstrong, Ducane | 69W43 Furnace Flame Sensor | 69W43, 69W4301, LB-74940B, LB74940B |
| Goodman, Amana, Daikin, Janitrol | 0130F00010 Furnace Flame Sensor | 0130F00010, B1172606, B11726-06, 20488501 |
| Carrier, Bryant, Payne, Day & Night | LH680014/LH680534 Furnace Flame Sensor | LH680014, LH680534, LH680012, LH33WZ511, LH33WZ515, LH33WZ517, and related part numbers |
| Lennox, Armstrong, Ducane | 52W29 Furnace Flame Sensor | 52W29, 52W2901, 31L71, 31L7101, LB-74940A |
Please verify your appliance model and original part number before purchasing to ensure the replacement is compatible.
Recommended Replacement Parts to restore gas and power (Source: Bluestars Parts)
5. When Should You Call a Professional?
A dirty flame sensor can sometimes be cleaned or replaced, but some furnace problems require professional diagnosis. Contact a qualified HVAC professional if you notice any of the following:
- The furnace still short cycles after cleaning or replacing the sensor: Continued shutdowns may indicate another problem with the ignition system, wiring, gas supply, control board, or airflow rather than the flame sensor itself.
- The furnace repeatedly enters ignition lockout: Recurring lockouts can result from a faulty flame sensor, igniter, gas-pressure problem, blocked vent, overheating, or control-board issue. A technician can identify the actual cause before resetting the system.
- You smell gas near the furnace: Stop using the furnace and leave the area. Do not operate electrical switches or attempt further repairs. Contact your gas utility or emergency services from a safe location.
- A carbon monoxide alarm activates: Leave the home immediately and contact emergency services. Carbon monoxide is odorless and can indicate a serious combustion or venting problem.
- You find burned wiring, damaged connectors, or other electrical problems: Electrical damage requires further testing and should not be corrected simply by replacing the flame sensor.
- The sensor looks fine but flame-sensing error codes keep returning: Persistent ignition or flame-sensing faults after cleaning may require testing of the sensor signal, grounding, wiring, gas valve, or control board.
6. FAQ: Bad Flame Sensor Symptoms
6.1. Why Does My Furnace Shut Off a Few Seconds After the Burners Ignite?
If the burners ignite but shut off after a few seconds, the flame sensor may not be detecting the flame correctly. The control board then closes the gas valve as a safety measure. Dirt, oxidation, poor grounding, or a faulty sensor can cause this problem, although other ignition-system faults can produce similar symptoms.
6.2. Can a Bad Flame Sensor Cause a Complete Furnace Lockout?
Yes. If the furnace repeatedly fails to confirm a flame, the control board may stop further ignition attempts and place the system in lockout mode. The number of failed attempts before lockout varies by furnace model and control system.
6.3. Should I Clean or Replace a Dirty Flame Sensor?
A sensor with light soot or oxidation may only need cleaning, provided it is otherwise undamaged and the manufacturer's instructions permit cleaning. Replace the sensor if it has cracks, severe corrosion, or physical damage, or if testing confirms that it continues to fail after cleaning.
6.4. Does a Bad Flame Sensor Affect My Energy Bill?
It can indirectly increase heating costs if it causes frequent short cycling. Repeated starts and stops may reduce heating performance and increase component wear. However, higher energy use depends on the furnace's operating conditions and the underlying cause of the shutdowns.
6.5. How Do I Find the Correct Flame Sensor Part Number for My Furnace Brand?
Check the original sensor for a printed part number and locate the furnace model number on the equipment data label. Compare these details with the manufacturer's service manual or replacement-part compatibility list rather than choosing by brand or appearance alone.
Recognizing bad flame sensor symptoms early can help you investigate repeated furnace shutdowns and ignition lockouts. If replacement is needed, browse Furnace Parts from BlueStars Parts. Always verify your furnace model, original part number, and replacement specifications before ordering.
